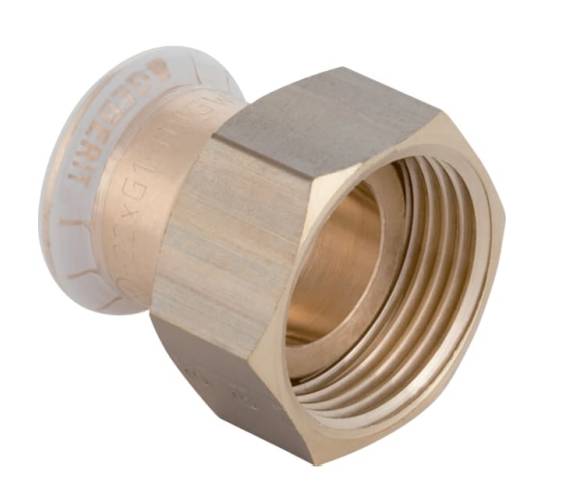

Geberit Mapress Copper Adaptor With Union Nut
Verified by manufacturer 3 days ago
65081 - DN 10 | 32 mm Length
65081 - DN 10 | 32 mm Length
Geberit Mapress copper adaptor with union nut.
Application
- For cold and hot potable water.
- For cooling and heating water without antifreeze agent.
- For cooling and heating water with antifreeze agent.
- For district heating water ≤120°C.
- For service water and process water.
- For compressed air (oil purity class 0–3).
- For negative pressure.
- For inert gases (e.g. nitrogen).
- For technical building systems, industry and shipbuilding.
Description
Geberit Mapress copper adaptor with union nut.
Features and benefits:
- Pressing indicator.
- Leaky if unpressed up to ø ≤54 mm.
- Union nut made of brass.
- Seal ring made of CIIR, black, up to ø ≤54 mm.
- Seal ring made of EPDM, black, from ø >54 mm.
- Flat gasket made of EPDM.
- Pressing socket with transparent protection plug.
General information
Color | Copper |
Material | Gunmetal |
Shape | Other |
Length | 32 mm 37 mm 39 mm 40 mm 43 mm |
Uniclass |
SKU Code | 65081 |
Specification data - Gunmetal pipe fittings
Classification data | |
Product reference | Geberit Mapress Copper Adaptor With Union Nut. |
Accessories | Seal CIIR, black (up to ø ≤54 mm). Seal ring, EPDM (up to ø >54 mm). Flat gasket, EPDM. |
Operating temperature | 0–100°C. |
Material grade | Gunmetal (CuSn5Zn5Pb2-C). |
Length | 32 mm. |
Diameter | 10 DN. |
Sustainability data
Material | Gunmetal |
