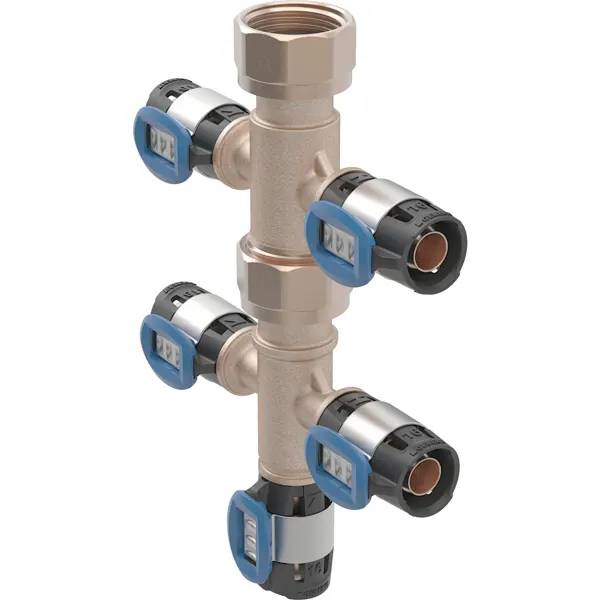

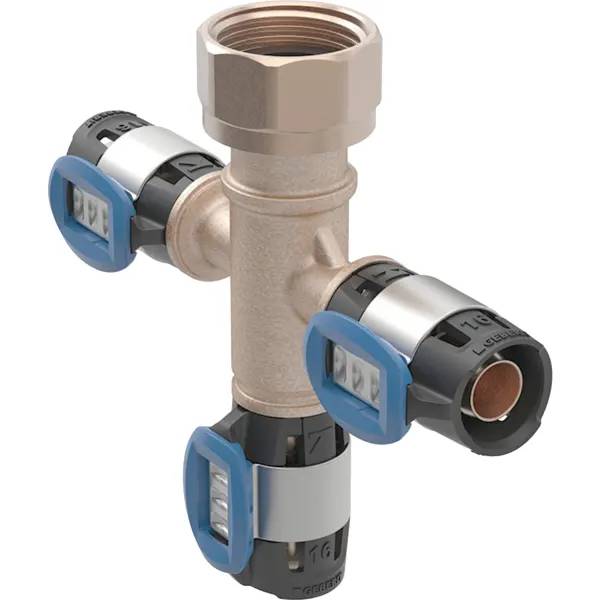

Geberit piping manifold with FlowFit pressing connections
Verified by manufacturer 4 days ago
653.434.00.1
653.434.00.1
Geberit piping manifold with FlowFit pressing connections.
Application
- For cold and hot potable water.
- For cooling and heating water without antifreeze agent.
- For cooling and heating water with antifreeze agent.
- For service water and process water.
- For treated water.
- For rainwater with a pH value of > 6.0.
- For seawater.
- For chemicals and technical liquids.
- For compressed air (oil purity class 0–3).
- For negative pressure.
- For inert gases (e.g. nitrogen).
- For technical building systems, industry and shipbuilding.
Description
Geberit piping manifold with FlowFit pressing connections.
Features and benefits:
- Pressing indicator.
- Leaky if unpressed.
- Lead-free.
- O-ring made of EPDM.
- Pressing connector with transparent protective cap.
General information
Color | Bronze |
Finish | Brass |
Material | Brass |
Shape | Other |
Length | 122 mm |
Width | 16 mm |
Height | 105 mm 167 mm |
Uniclass |
SKU Code | 653.434.00.1, 653.435.00.1 |
Specification data - Bronze pipe fittings
Classification data | |
Product reference | Geberit piping manifold with FlowFit pressing connections. |
Material | Lead-free silicon bronze (CuZn21Si3P). |
Diameter | 653.434.00.1 - DN16. |
Outlets | 3. |
Sustainability data
Material | Brass |
