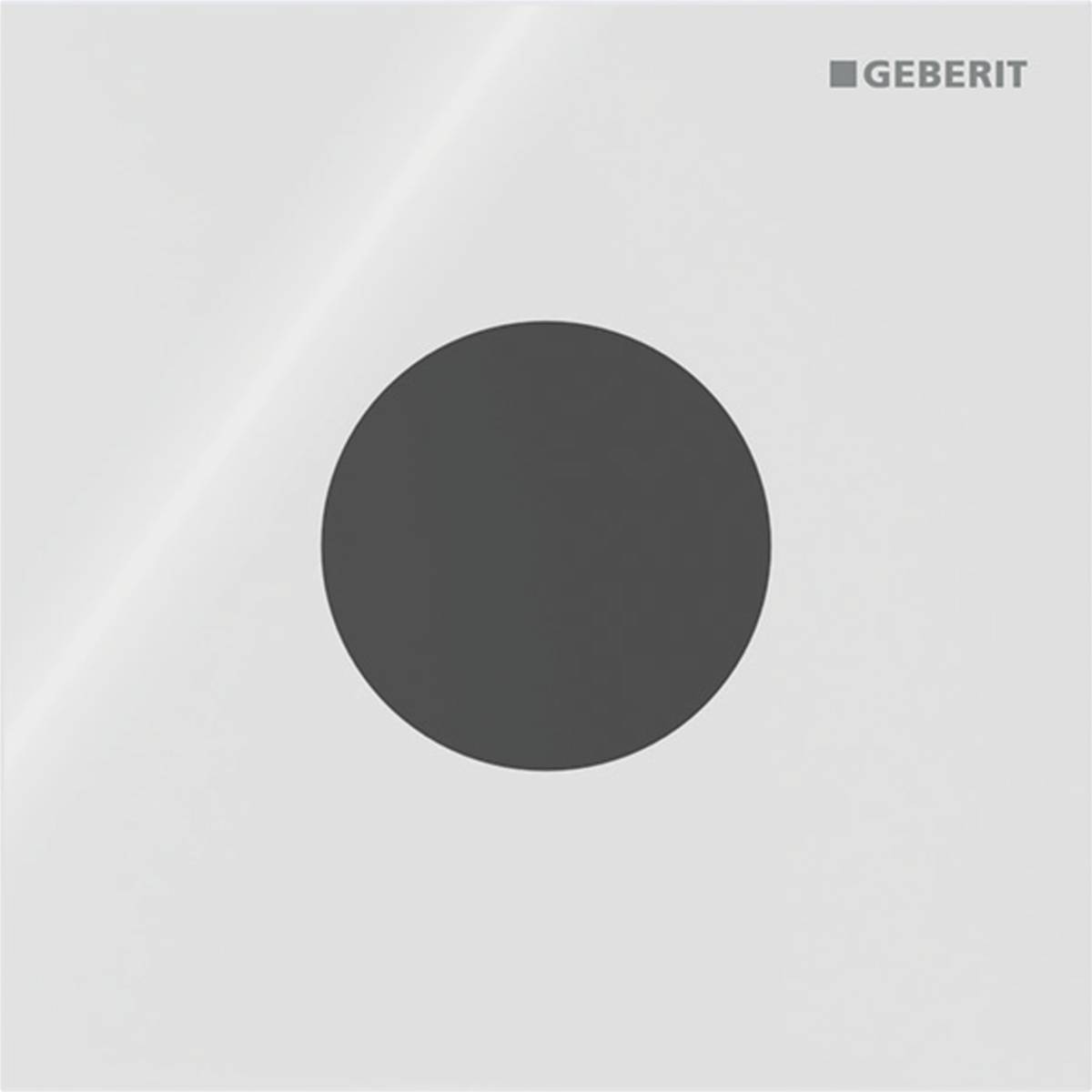

Geberit urinal flush control with electronic flush actuation, mains operation, Type 40 cover plate, round
Verified by manufacturer 2 days ago
116.024.SI.1 – White
116.024.SI.1 – White
Geberit urinal flush control with electronic flush actuation, mains operation, Type 40 cover plate, round.
Application
- For automatic flush actuation of urinals.
- For Geberit frames for urinal with front actuation.
- For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009).
Description
Geberit urinal flush control with electronic flush actuation, mains operation, Type 40 cover plate, round.
Features and benefits:
- Cover plate with securing bar
- Reliable IR distance detection
- Self-adjusting IR sensor
- Infrared user detection with background fade-out
- Water-saving hybrid mode can be set
- Flush time can be set
- Adjustable interval flush
- Dynamic flushing time adjustment
- Preflush can be set
- Can be switched to operation with covered urinal
- Power supply via mains connection
- Ready for operation upon connection to mains
- Power supply unit with LED display
- Power failure control unit
- Valve-closing function when power fails
- One-time flush after activation of the power supply
- Functions can be set and queried with the Geberit Service Handy
- Device settings and operation with mobile device via integrated Bluetooth® interface
- Compatible with Geberit Control App
- Wired networkable with Geberit gateway via GEBUS converter
- Wirelessly connectable with Geberit Gateway via Bluetooth®
- Compatible with Geberit Connect
- Flush actuation can be deactivated
- Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set.
General information
Color | White Red Black Grey |
Finish | Brushed Chrome Brass Matt |
Material | Glass Stainless steel |
Shape | Circle |
Length | 4 mm 2 mm |
Width | 125 mm |
Height | 125 mm |
Uniclass | |
CAWS | N13/15 Urinals and cisterns N13/315 Urinals and auto-flushing cisterns S90/690 Flush control devices |
SKU Code | 116.024.SI.1 |
Specification data - Flush control devices
Flush volume | 0.3 L/s (without flow limiter); 0.18 L/s (with flow limiter). |
Materials | |
Body | Glass. |
Finish and colour | White. |
Operation | Infrared sensor. |
Controller | Mains-operated. |
Ingress protection | IP45. |
Nominal voltage | 110–240 V a.c. |
Operating voltage | 4.5 V d.c. |
Frequency | 50–60 Hz. |
Dimensions | 125 x 125 x 4 mm. |
Sustainability data
Material | Glass Stainless steel |
