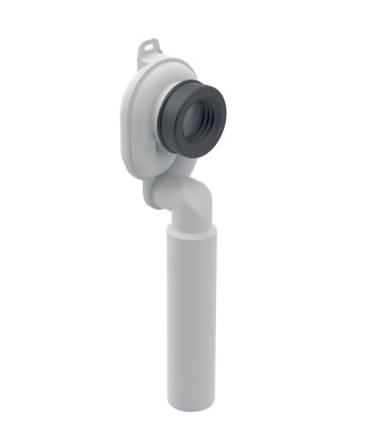

Geberit urinal trap, vertical outlet
Verified by manufacturer 9 days ago
Geberit urinal trap, vertical outlet.
Application
- For urinals with outlet to the rear.
- For urinals with flush volume 1–4 L.
Description
Geberit urinal trap with vertical outlet.
Features and benefits:
- Vertical outlet.
- 50 mm deep water seal.
- EPDM sleeve.
General information
Color | White |
Finish | Smooth |
Material | Plastic EPDM |
Shape | Other |
Width | 100 mm |
Height | 375 mm |
Uniclass | |
CAWS | N13/315 Urinals and auto-flushing cisterns N13/316 Urinals and flushing valves N13/15 Urinals and cisterns |
SKU Code | 152.951.11.1 |
Specification data - Sanitary appliance traps
Classification data | |
Trap | Urinal trap. |
Material | Plastics. |
Colour | White. |
Size | DN 50. |
Depth of water seal (minimum) | 50 mm. |
Integral accessories | EPDM sleeve. |
Sustainability data
Material | Plastic EPDM |
