GenieEvo - Air Insulated MV Switchgear 3.3–13.8 kV
Verified by manufacturer 3 months ago

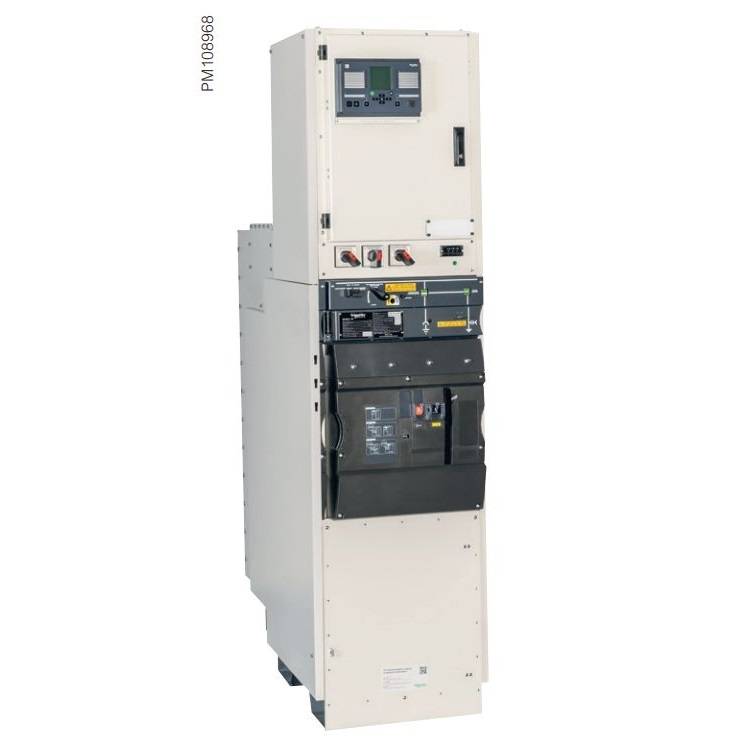

Incomer/ feeder (VC)

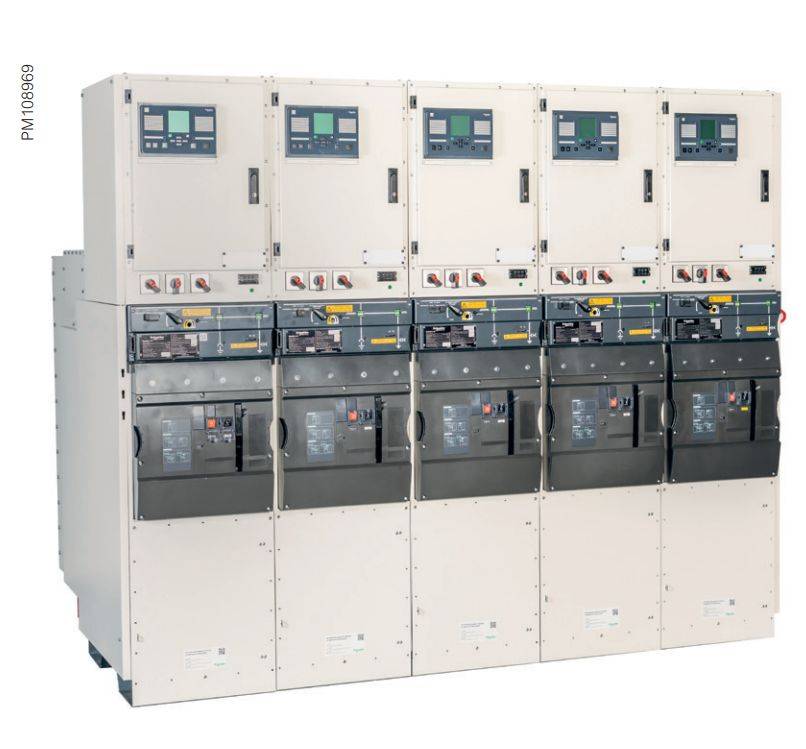

Incomer/ feeder (VC)
GenieEvo offers six switchgear options and 18 protection and control module options, providing a total of 69 standard panel combinations.
Application
Energy:
- Distribution substation; Delivery substation,
Industry:
- Food and beverage; life sciences; automotive; oil and gas; metallurgy.
Cloud and service providers:
- Data centres/ colocation services; Telecom service providers; web-based service providers; IT equipment and professional services.
Infrastructures:
- Marine and shore power; airports; ports; water treatment;
Buildings:
- Large commercial centres; hospitals; finance; hotels; education.
Description
GenieEvo offers six switchgear options and 18 protection and control module options, providing a total of 69 standard panel combinations.
69 pre-engineered standard panel combinations.
Customized solutions are also available on request.
GenieEvo comprises:
- Cast resin encapsulated MV system;
- Demountable vacuum circuit breaker;
- Controlled air, resin encapsulated series disconnector;
- Flexible pre-engineered protection and control modules;
- Smart grid and asset management ready.
Features and benefits:
- Fixed pattern, offering the following customer benefits:
- Reduced substation dimensions;
- Saving civil and land costs;
- No racking mechanism;
- Fewer switchgear components;
- Easier to operate;
- No associated maintenance;
- No withdrawable isolation contacts;
- No associated maintenance;
- Fully encapsulated MV system.
- Pre-engineered, offering the following customer benefits:
- Reduced lead time;
- Reduced engineering at factory;
- Production line optimized for standard panels;
- Reduced engineering time for client;
- Lower selling costs;
- Reduced labour time during manufacture;
- Reduced contract engineering time;
- Manufacturing unit optimized for standard panels;
- Less technical onus on client;
- Application based solutions;
- All information available pre-order;
- Schemes designed as a package solution.
General information
Color | White |
Material | Metal Guidance for specification option: Housing. Other |
Shape | Rectangle |
Length | 1230 mm Guidance for specification option: Depth. |
Width | 500 mm 750 mm |
Height | 2108 mm |
Uniclass |
Specification data - High-voltage modular switchboards
Classification data | |
Standards | To IEC 62271-1, IEC 62271-100, IEC 62271-103, IEC 62271-200 and IEC 62271-102. Guidance for specification option: Also:
|
Third-party certification | All units are internal arc tested to EN ATS 41-40/IEC 62271-200. |
Format | Metal-enclosed. |
Internal arc classification | IAC-AF 25 kA 1s when tested to IEC 62271-200. |
Rated voltage (Ur) | 13.8 kV. |
Rated frequency | 50 Hz. 60 Hz. |
Rated insulation levels | |
Rated lightning impulse withstand voltage (Up) | 95 kV phase-to-phase, phase-to-earth. |
Rated short-time withstand current (Ik) | 25 kA for three seconds. |
Partition class | LSC2A-PM. |
Current rating | 200 A. Guidance for specification option: Dimensions (height x depth x width): 2108 x 1230 x 500 mm. 630 A. Guidance for specification option: Dimensions (height x depth x width): 2108 x 1230 x 500 mm. 1250 A. Guidance for specification option: Dimensions (height x depth x width): 2108 x 1230 x 500 mm. 2000 A. Guidance for specification option: Dimensions (height x depth x width): 2108 x 1230 x 750 mm. 2500 A. Guidance for specification option: Dimensions (height x depth x width): 2108 x 1230 x 750 mm. Fan cooled when current exceeds 2100 A; consult manufacturer for details. |
Transformers | Guidance for specification option: Consult manufacturer's literature for current (CT) and voltage (VT) transformers and insert requirements. Current transformers: Ring type, air insulated current transformers are used for protection, indication and metering. Standard CT specification (ratio, class, and burden) have been selected to suit the network requirements. If the standard current transformers do not suit your specific application consult the manufacturer. Voltage transformers: Cast resin voltage transformers are used for protection, indication and metering. Standard VT specification (system voltage, class, and burden) have been selected to suit the network requirements. However, if the standard voltage transformers do not suit your specific application consult the manufacturer.
|
Integral accessories | P1 General purpose feeder or incomer. P2 Transformer feeder. P3 Cable feeder with advanced monitoring and control. P4 Unit protected cable feeder. P5 Unit protected cable feeder with back up overcurrent and measurement. P6 Unit protected cable feeder with back up overcurrent and power measurement. P7 Single transformer incomer. P8 Cable feeder or incomer with full measurement. Guidance for specification option: Suitable for automatic changeover. P9 Parallel cable feeder or incomer with directional overcurrent and earth fault. P10 Parallel dual transformer incomer. P11 Control logic for changeover scheme. Guidance for specification option: Fitted to bus section. P12 Interconnection breaker (G99 power export). P13 Interconnection breaker (G99 no power export). P14 REC metering for embedded generation. P15 Transformer incomer for LV generator. P16 MV generator incomer. P17 Basic circuit breaker control no protection. P18 Control logic for changeover scheme. |
Options | Guidance for specification option: Consult manufacturer's literature for options and insert requirements for transducers, electrical trip/ close etc. |
Accessories | Gland plate. Guidance for specification option: Consult manufacturer for gland plate options and insert requirements. Main cable box entry. Guidance for specification option: Bottom or top entry; options will vary depending on model specified - consult manufacturer for options and insert requirements. None. Key interlocks. Phase comparitors. |
Designation | Guidance for specification option: The designation of the type tested GenieEvo switchgear gives information about its design and rated electrical parameters. Determined by options selected:
Insert details based on specification data. |
Sustainability data
Material | Metal Guidance for specification option: Housing. Other |
