GenieMat TMIP - Treadmill Isolation Pads
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type

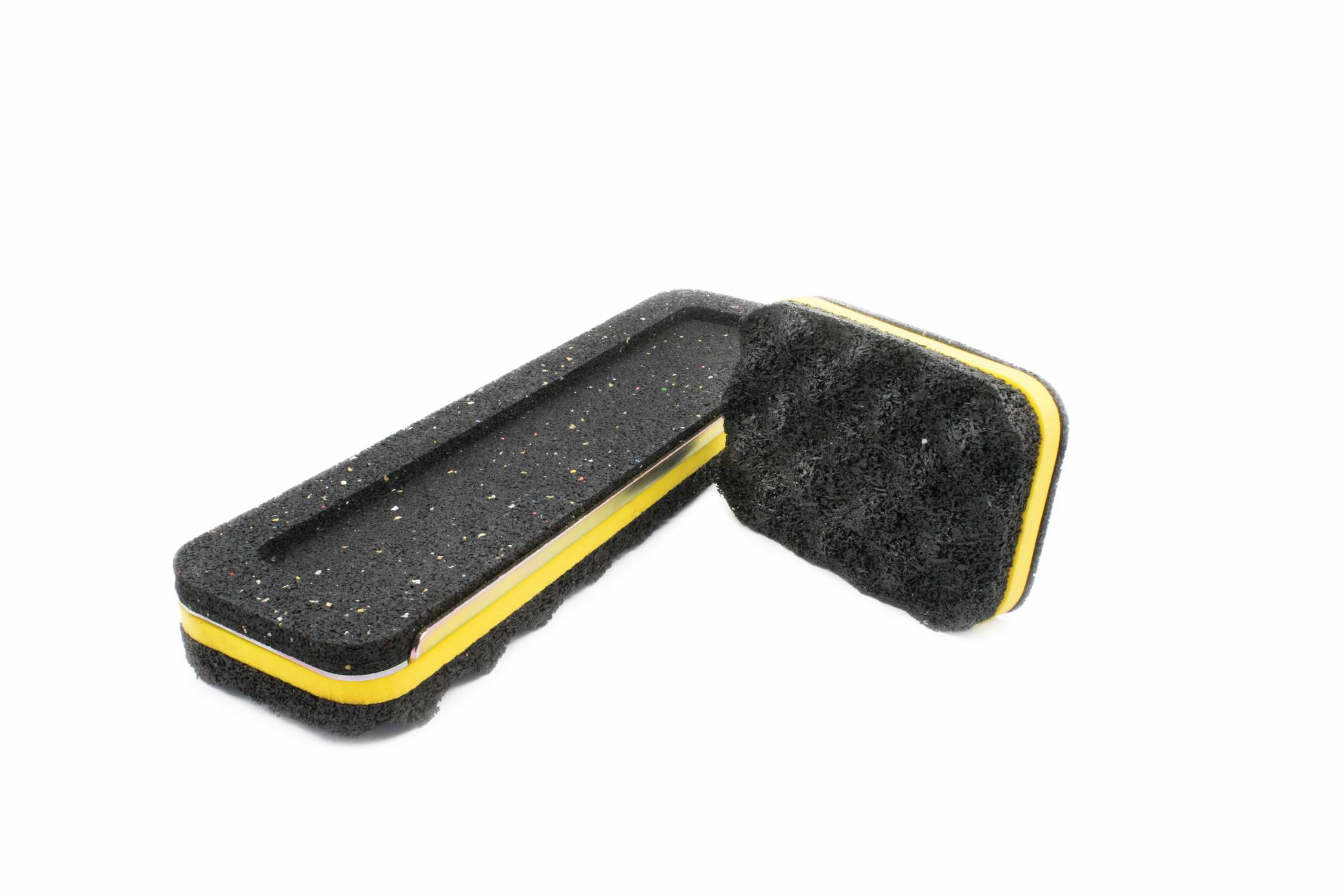

Complete vibration isolation system for treadmills composed of two pairs of front and rear isolation pads.
Application
Place one pad under each of the four treadmill feet. The floor under the treadmill should be clean and free of debris and all machine cords should have some free play.
Ensure the front pads are installed in the front and the rear pads are installed at the back of the unit. Lift the equipment according to the manufacturer’s specifications and use proper safety procedures.
Lower the treadmill into place and ensure that the foot is centered on the mounts. Please note that even deflection occurred.
Description
GenieMat TMIP are a mix of vibration isolators made from a superior combination of vibration damping materials.
By combining ultra high performance elastomers with bearing plates, outstanding vibration isolation values are achieved for the most problematic equipment.
Vibration pads are available for any treadmill application. Vibration isolation efficiencies up to 99% and over 40 dB noise reduction are commonly achieved, eliminating noise transfer into structure and other areas.
Features and benefits:
- Water, petroleum, alkali and fuel resistance - excellent.
- The treadmill isolation pads are inherently non-slip.
- Vibration isolation efficiencies up to 99%.
- Up to 40 dB noise reduction.
General information
Color | Black Yellow |
Material | Composite Guidance for specification option: Combination of vibration damping materials. |
Shape | Rectangle |
Length | 177.8 mm 457.2 mm |
Width | 127 mm |
Height | 50.8 mm |
Uniclass | |
CAWS | Q52/560 Exercise equipment |
Specification data - Pad mountings
Material | Composite of vibration damping materials. |
Size | 127 x 177.8 mm (rear mounts). |
Thickness | 50.8 mm. |
Static load range | Lightweight case: 45.4 kg, user 1.46 psi, deflection 1—2 cm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Canada |
Material | Composite Guidance for specification option: Combination of vibration damping materials. |
Third party certifications
ISO 9001 Quality Management
ISO 9001-2015: Quality Management System
