Genius Edge - Aluminium Rainscreen Cladding System

Verified by manufacturer 4 months ago

Genius Facades Limited

Non-combustible lightweight external wall cladding system with concealed fixings.

Jump to:
01922 716245 Website

Application

External facade installations - Masonry or Lightweight steel frame.

Description

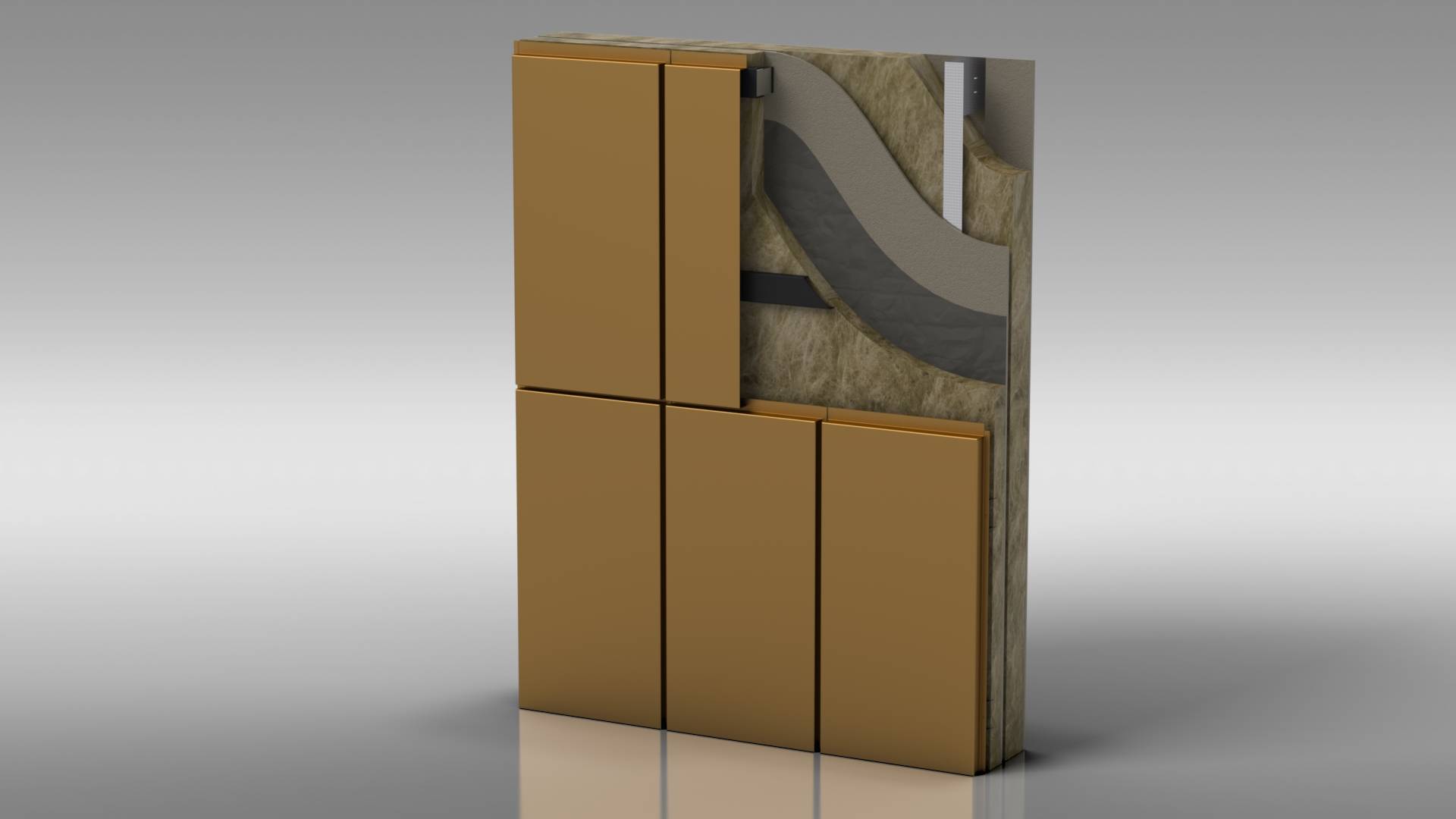

Genius Edge is a lightweight folded aluminium cassette panel system that’s cost-effective and available in both 2 mm and 3 mm thickness.


The BBA approved fully adjustable backing system comprises helping hand brackets and vertical T/L support rails. Horizontal carrier system also available with this system. The framing allows for use with multiple substrates including traditional masonry and lightweight steel frame. Please enquire directly with enquires@geniusfacades.com for static calculation and further details.



Features and benefits:

  • Non-combustible (A1 and A2-s1, d0).
  • Horizontal and vertical installation method available.
  • Cost effective.
  • Lightweight.
  • Simple system to design detail and install.
  • Recyclable.
  • Concealed fixings.
  • Available in 2 mm and 3 mm thickness.

General information

Color

-

Manufacturer guidance

Extensive range of colours and textures including RAL and special metallics.

Finish

Powder-coated

Guidance for specification option:

Polyester powder coating (PPC).

Anodized

Material

Aluminium

Guidance for specification option:

2–3 mm.

Shape

Square

Rectangle

Manufacturer guidance

Specialist curving available.

Length

4000 mm

Bespoke

Guidance for specification option:

Available on request.

Width

500 mm

Bespoke

Guidance for specification option:

Available on request.

Warranty description

-

Manufacturer guidance

Dependant on finish, material and location. Please contact manufacturer to discuss.

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

-

Manufacturer guidance

Extensive range of brackets to accommodate specified thickness of mineral wool insulation and required cladding zones.

Breather membrane

-

Material

By others.

Fasteners

By others.

Secondary support structure

BBA approved Genius Facades braces and rail system.

Cavity fire barriers

-

Horizontal

By others.

Vertical

By others.

Cladding panels

-

Material

Aluminium, PPC.

Guidance for specification option:

Polyester Powder Coating.

Aluminium, Anodized.

Guidance for specification option:

Anodized.


Aluminium, PVDF.

Guidance for specification option:

Pre-Coat.

Corten steel.

Panel joints

As typical details.

Reveals

As typical details.

Samples required

-

Manufacturer guidance

Available on request.

System accessories

None.

Flashings.

Cappings.

Trims.

Window pods.

Thickness

2 mm.

Guidance for specification option:

Corten and aluminium.

3 mm.

Guidance for specification option:

Aluminium.

Manufacturer guidance

Generally 2–3 mm. Other thicknesses available on request.

Fire classification

To EN 13501-1, A1-s1, d0.

To EN 13501-1, A2-s1, d0.

Joint width

10 mm.

20 mm.

Rail material/ finish

Extruded aluminium, 6063/T6 grade alloy.

Sustainability data

Material

Aluminium

Guidance for specification option:

2–3 mm.

Recyclability

100%

Literature

Genius A1 Pre-Coat Brochure

Genius A1 Pre-Coat Brochure

Genius Facades - Finishes Brochure

Genius Facades - Finishes Brochure

Genius Facades Systems Brochure - 2023

Genius Facades Systems Brochure - 2023

Case studies

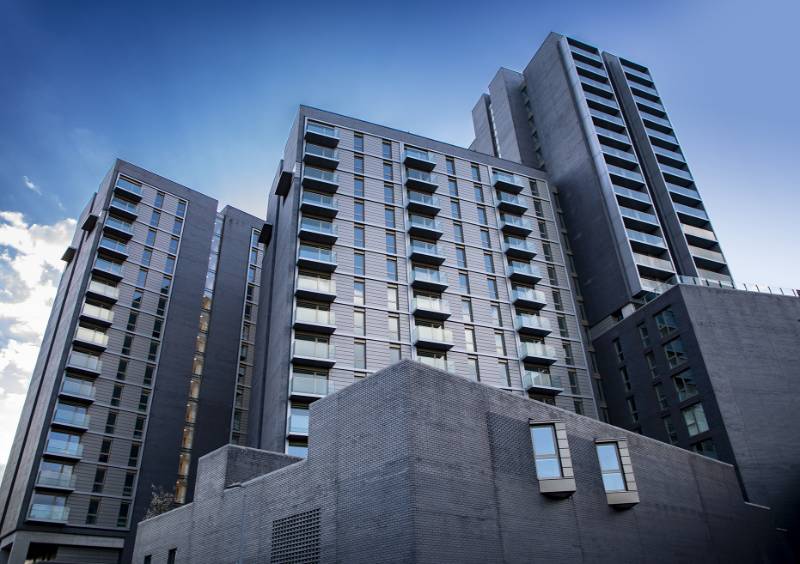

Gore Street, Manchester
