Geometric Glazing - Glazed Relocatable Partitions

Name: Geometric Glazing - Glazed Relocatable Partitions
Brand: Lusso Systems Ltd
SKU: qCavP7sthx3RN3bNHz93GZ

Verified by manufacturer 2 months ago

Lusso 55 Geometric

Lusso Systems Ltd

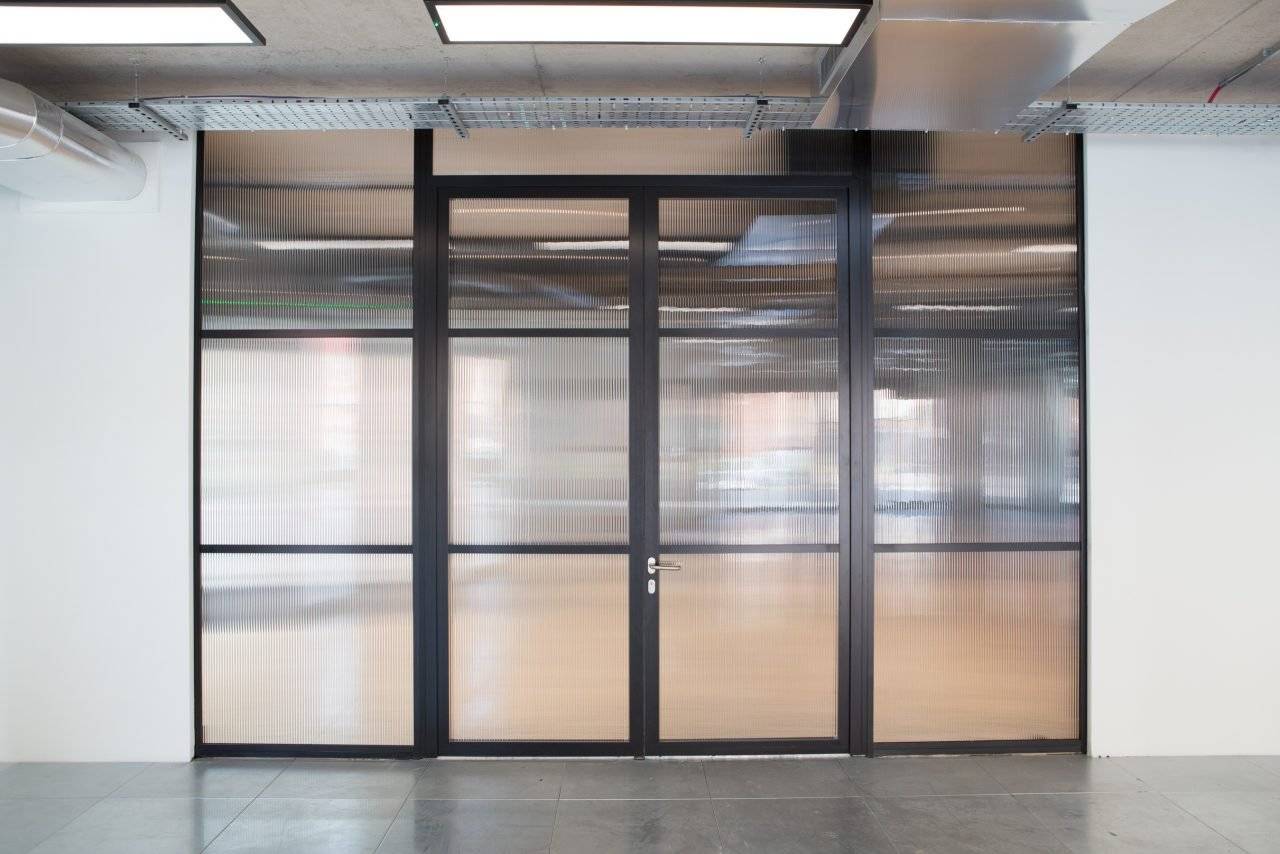

Industrial style partitioning with slimline aluminium framework and glazing bars both horizontally and vertically.

Jump to:

BOS

01275 372293 Website

Application

For use in a range of applications and sectors. These include commercial, education, healthcare, leisure, automotive, retail and technology.

Description

Lusso Geometric glazing offers a slimline aluminium framework with glazing bars both horizontally and vertically and is available in both single and double-glazed options. This framed system provides versatility by retaining the acoustic, fire and structural applications whilst giving an industrial banded look.

Features and benefits:

Minimalistic powder-coated aluminium framework, in a variety of RAL colours and finishes.
A range of door options such as timber or glass, swing or sliding, with various ironmongery types.
Glass thicknesses from 6 to 17 mm.
Deflection head details available in ±15 mm and ±25 mm to accommodate building movement.
High acoustic performance ranging from 34 to 54 dB.

Please note that acoustic, fire-rated and structural certification and support for Lusso products and systems is available on a project-specific basis. Please contact Lusso's specification team directly for further information.

General information

Color	Other Guidance for specification option: RAL polyester powder-coated or anodized.
Finish	Powder-coated Polished Guidance for specification option: Chemically brightened. Anodized
Material	Glass Aluminium
Shape	Rectangle
Length	Bespoke Guidance for specification option: Please consult manufacturer for further details.
Width	Bespoke Guidance for specification option: Please consult manufacturer for further details.
Height	Bespoke Guidance for specification option: Please consult manufacturer for further details.
Warranty description	- Manufacturer guidance Based on a job specific basis, please contact Lusso for further information.

Uniclass	Pr_25_71_57_60 Partition panelsPrimary Ss_25_12_65_65 Panel partition systems
CAWS	K30/10 Relocatable partition system K30/130 Relocatable partition system

Specification data - Partition panels

Third-party certification	Constructionline-Gold; Builders Profile; CHAS; FIRAS; SMAS; Acclaim (SIPP).
Unit size	-
Thickness	55 mm.
Partition height (nominal)	- Manufacturer guidance Insert requirements. Maximum standard height 3000 mm.
Width (nominal)	- Manufacturer guidance Insert requirements. For partitions over 1200 mm wide, consult with Lusso.
Deflection allowance (maximum)	-
Head	28 mm deep x 55 mm wide with clip-on-bead. 50 mm deep x 55 mm wide (±15mm deflection). Guidance for specification option: To suit 10-12.8 mm glass.
Floor	28 mm deep x 55 mm wide with clip-on-bead. 50 mm deep x 55 mm wide base track. Manufacturer guidance To suit 10-12.8 mm glass.
Verticals	28 mm deep x 55 mm wide with clip-on-bead. 50 mm deep x 55 mm wide. Manufacturer guidance To suit 10-12.8 mm glass.
Panel partition type	Framed relocatable partition.
Framing, fixing points and joints	Aluminium extruded sections. Guidance for specification option: Fixings as per manufacturer literature.
Joint treatment	-
Type	Glass-to-glass I joint. Silicone joints.
Glazed panels	-
Type	Double-glazed, 10 mm toughened and 12.8 mm acoustic laminate safety glass. Double-glazed, 10–12 mm heat-soaked toughened safety glass. Double-glazed, 10–15 mm switchable smart glass. Manufacturer guidance Low iron available on request. All glass types available; please consult Lusso with all requirements. All glass used satisfies the requirement of class 3 BS EN 12600 or Class C of BS 6206.
Door arrangement	-
Type	Silenzio framed glass door, single leaf, single action, up to 41 dB (Rw). Silenzio framed glass door, unequal leaves, single action, up to 41 dB (Rw). Silenzio framed glass door, double leaves, single action, up to 41 dB (Rw). Eclipse sliding door, exposed single leaf. Eclipse sliding door, exposed double leaves. EclipseSG sliding door, concealed single leaf. EclipseSG sliding door, concealed double leaf.
Door frames	Lusso 55 aluminium door frame. Guidance for specification option: 50 mm wide aluminium face.
Door panels	-
Type	Silenzio, single glazed aluminium framed door leaf – 31 dB (Rw). Silenzio, single glazed aluminium framed door leaf – 34 dB (Rw). Silenzio, single glazed aluminium framed door leaf – 36 dB (Rw). Silenzio, single glazed aluminium framed door leaf – 41 dB (Rw). Eclipse sliding door, exposed, single. Eclipse sliding door, exposed, double. EclipseSG sliding door, concealed, single. EclipseSG sliding door, concealed, double. Lusso frameless glass door leaf – 32 dB (Rw).
Trims	25 mm Geometric trims bonded to glazing to create mullion and/or transom effect (doors included).
Hardware	- Manufacturer guidance Insert requirement for specified ironmongery options.
Cable management and outlets	Not required. Double glazed Tech Panel to accommodate access control and other electronics.

Manifestation	None. 2 rows of 50 mm opal frost dots. 2 rows of 50 mm opal frost squares. Privacy mirror film. Client specific custom designs. Guidance for specification option: Insert requirements. Manufacturer guidance If geometric bars are between a height of 850 mm and 1000 mm and again between 1400 mm and 1600 mm, manifestation is not required.
Acoustic performance	41 dB (Rw). 45 dB (Rw). Manufacturer guidance Ratings in accordance with BS EN ISO 717-1: 1997 and tested to BS EN ISO 140-3:1995.
Fasteners	To manufacturer’s specifications.
System accessories	- Manufacturer guidance Access control, tech panels – consult manufacturer for details.
Samples required	- Manufacturer guidance Available from manufacturer on request.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	100% (Aluminium and glass)
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 % Manufacturer guidance Glass % available from manufacturer on request.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	2
IFC	-	1
