GEZE PACE SW 100 - Access Control Speed Gate
Verified by manufacturer 2 months ago
Accessible
Accessible

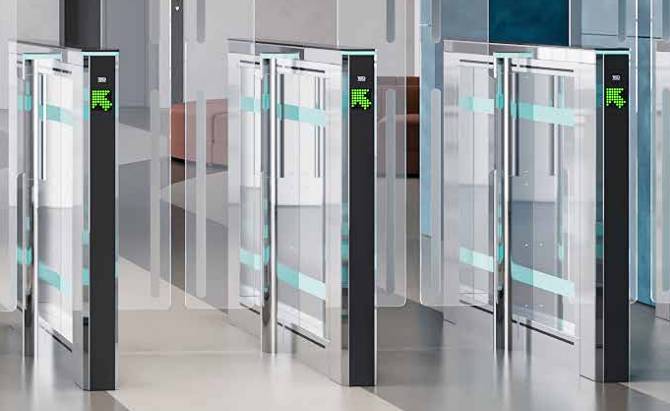

A glass top metal cabinet speed gate.
Application
Suitable for commercial applications including hotels, banks, and offices.
Description
The SW 100 has a slim design and a high level of security.
This type of speed gate can be controlled using a push button or interfaced with a variety of access control system solutions and provides an anti-tailgating function. In case of power failure, the option of a backup battery is available.
Features and benefits:
- A range of finishes are available.
- Well-rounded design of the turnstile posts, changeable illumination and expressive indication makes this turnstile usage safe and comfortable for passengers.
- In the event of a power failure, the leaves can be manually opened (fail-safe).
- Open or closed mode.
- Free access.
- Single pass.
- Access control system.
- Push button.
- Motorized.
- Bi-directional.
- Anti-tailgating.
General information
Color | Grey Silver Other |
Finish | Brushed Polished Powder-coated |
Material | Stainless steel Glass |
Shape | Rectangle |
Length | 1295 mm |
Width | 789 mm Guidance for specification option: Lane width: 550 mm. 1139 mm Guidance for specification option: Lane width: 900 mm. |
Height | 1010 mm |
Warranty description | One year Two year |
Uniclass | |
CAWS | L20/60 Doors L20/490 Automatic doors Q50/160 Turnstile |
Specification data - Half-height access control gates
Standard | To EN 17352. |
Properties | |
Safety features | Fail-safe and emergency override. |
Configuration | Manufacturer guidanceInsert number of lanes required. |
Housing | |
Type | Solid frame. |
Material and finish | Stainless steel, brushed AISI 304.Guidance for specification option: Standard. Stainless steel, brushed AISI 316.Stainless steel, polished AISI 304.Stainless steel, polished AISI 316.Stainless steel, powder-coated RAL.Guidance for specification option: Insert colour requirement below. |
Colour | Manufacturer guidanceInsert requirement or omit. |
Panel | |
Type | Solid glass top. |
Rotation | Swing. |
Speed of opening | 0.3–0.6 s. |
Material and finish | Glass. |
Size | |
Clear opening width (minimum) | 900 mm. |
Overall width | 1139 mm. |
Length | 1295 mm. |
Height | 1010 mm. |
Security | Anti-tailgating system. |
Credential Reader | |
Controls | Push buttons. |
Number of transactions (minimum) | 30 per minute. |
Control unit | Access control system. |
Power supply | 100–240 V a.c. 50/60 Hz.Guidance for specification option: DC source: 12 V. |
Accessories | Not required.Back-up battery.Manufacturer guidanceConsult manufacturer and insert requirements. |
Ingress protection (IP) rating | IP44. |
Type | BMDrive® servo-driven (BLDC). Guidance for specification option: BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings. |
Sustainability data
Material | Stainless steel Glass |
