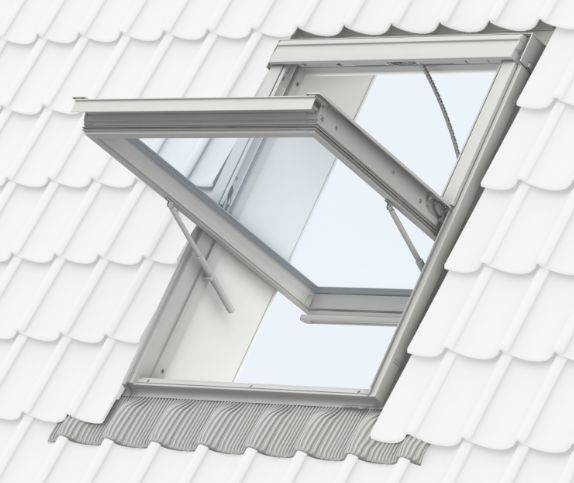

GGU White Polyurethane, Centre Pivot Roof Window, Automatic Smoke Ventilation System, 1.0 m²

Verified by manufacturer 13 days ago

VELUX Company Ltd

Electrically operated, maintenance free, white polyurethane, centre pivot roof window system providing 1.0 m² of smoke-free ventilation area on roof pitches from 15–90°.

Jump to:
+44 (0)1592 778873 Website

Application

Designed to be used on roofs with pitches from 15–90°.

Description

A standard package of components providing a roof window with an automatic smoke ventilation facility.


Features and benefits:

  • Maintenance free, white polyurethane electrically operated, centre-pivot roof window, providing 1.0 m² smoke ventilation area.
  • Single flashing kit for slate or tile roofing.
  • Electronic control unit, smoke sensor and break glass point.
  • Standard: System is tested and certified to EN 12101-2.
  • Designed to be used on roofs with pitches from 15–90°.


Glazing:

- Code 7040:

  • 6.8 mm laminated inner pane with low-e coating; 15 mm Argon filled cavity; 4mm toughened outer pane.
  • Thermal performance (U-value): 1.3 W/m²K.
  • Sound insulation (Rw): 35 dB.
  • Light Transmittance (Tv): 0.68.
  • Total solar energy transmittance (g): 0.46.


Smoke vent:

– SD0L140:

  • For standard installation in slate up to 8mm thick; roof pitch 15–90°.
  • 1 x GGU SK06 007040 roof window – 1140 mm wide x 1178 mm high, with pre-installed motor.
  • 1 x KFX 210 control system (comprising control panel, smoke sensor and break glass point).
  • 1 x EDL SK06 0000 flashing.

– SD0W140:

  • For standard installation in tiles up to 120 mm in profile; roof pitch 15–90°. Also for interlocking slate, thatch and profile sheeting
  • 1 x GGU SK06 007040 roof window – 1140 mm wide x 1178 mm high, with pre-installed motor.
  • 1 x KFX 210 control system (comprising control panel, smoke sensor and break glass point).
  • 1 x EDW SK06 0000 flashing.


Installation products:

  • Insulation collar – Code BDX 2000: Optimizes the insulation around the window frame by preventing heat loss and eliminating cold bridges. Includes underfelt collar.
  • Underfelt collar – Code BFX 1000: Ensures a weathertight seal between the roof window and the roof.
  • Vapour barrier collar – Code BBX 0000: Prevents vapour from reaching the roof construction and so prevents interstitial condensation.

General information

Color

White

Guidance for specification option:

External Colour NCS S-7500-N; Internal Colour, white polyurethane NCS S 0500-N

Finish

Lacquered

Guidance for specification option:

Internal frame and sash has a white lacquer finish around a timber core.

Material

Timber

Guidance for specification option:

Timber core

Polyurethane

Guidance for specification option:

Polyurethane coated frames

Aluminium

Guidance for specification option:

Aluminium cladding. External cladding is available in grey aluminium; colour reference NCS S-7500-N - Code 0.

Size

-

Manufacturer guidance

(w x h)

Width

1140 mm

Height

1178 mm

Warranty description

Ten year

Guidance for specification option:

For window and pane

Three year

Guidance for specification option:

For electrical items

Uniclass

Pr_75_50_18_80 Smoke and heat exhaust control panelsPrimary

CAWS

L10/480 Roof windows

Product range

Smoke Ventilation Systems

Specification data - Smoke and heat exhaust control panels

Enclosure

-

Material

Timber.

Colour

Internal frame and sash have a white lacquer finish around a timber core. External cladding is available in grey aluminium; colour reference NCS S-7500-N - Code 0.

Batteries

-

Type

Electrically operated.

Guidance for specification option:

with Battery Back-up

Internal frame and sash

White polyurethane.

Guidance for specification option:

Code 0

External cladding

Grey aluminium; colour reference NCS S-7500-N.

Guidance for specification option:

Code 0

Roof pitch

Guidance for specification option:

Insert requirements.

Smoke vent

GGU SK06 SD0L140.

Guidance for specification option:

For standard installation in slate up to 8 mm thick; roof pitch 15–90°.

GGU SK06 SD0W140.

Guidance for specification option:

For standard installation in tiles up to 120 mm in profile; roof pitch 15–90°. Also for interlocking slate, thatch and profile sheeting.

Installation products

Not required.

Insulation Collar – Code BDX 2000.

Guidance for specification option:

Includes BFX.

Underfelt Collar – Code BFX 1000.

Vapour Barrier Collar – Code BBX 0000.

Wind deflector – Code KFD 0000.

Guidance for specification option:

For compliance with aerodynamic smoke ventilation requirements.

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

2.6 kg·CO₂e/kg

Self declared
