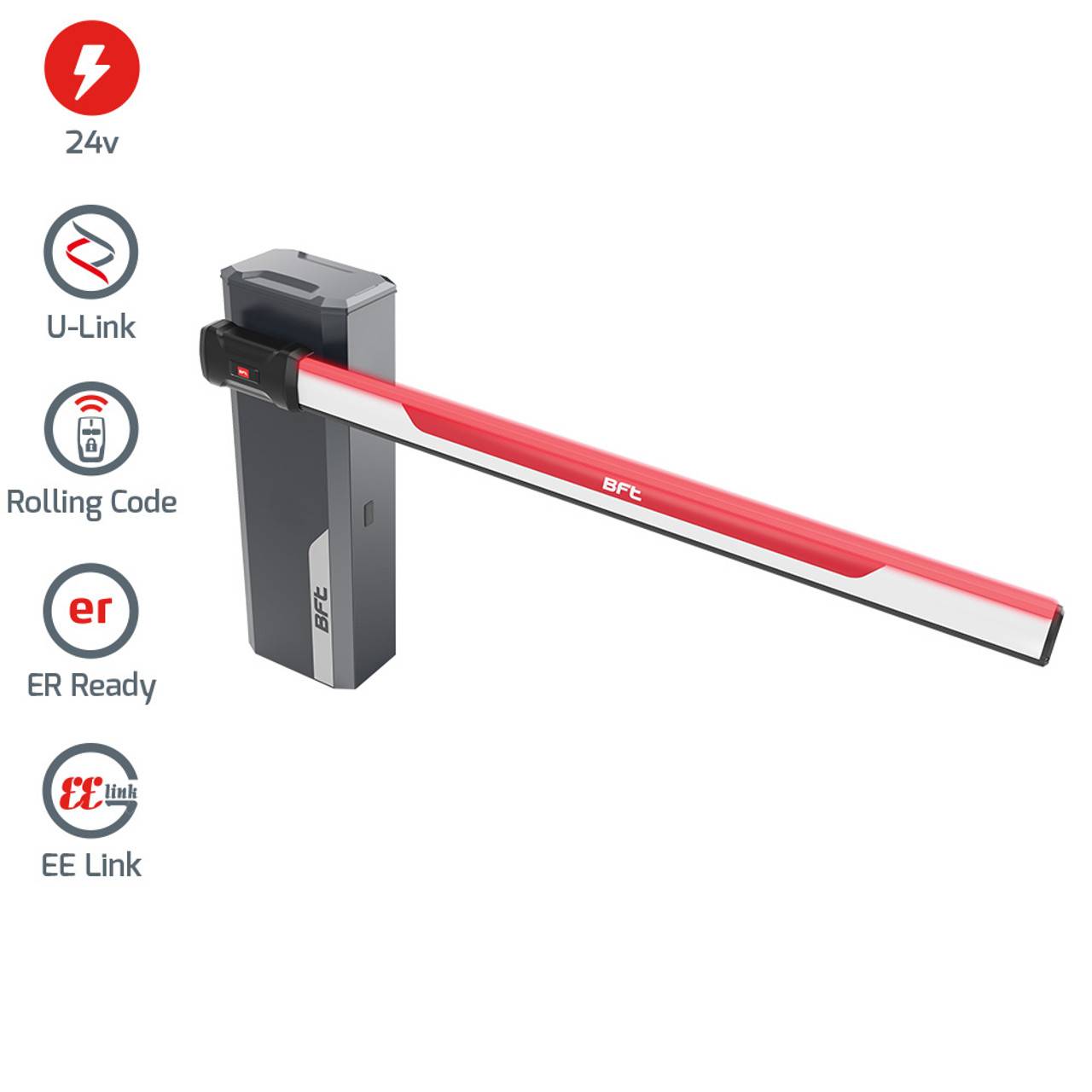

Giotto Ultra BT A 36 - Automatic Barrier

Verified by manufacturer 5 months ago

GIOTTO BT A ULTRA 36

BFT Automation UK Limited Variant:
Third party certifications:
  • CE Marking

    Certificate type

An automatic barrier for intensive usage.

Jump to:
+447874877863 Website

Application

Automatic Barrier designed for continuous and frequent use.

Description

The Giotto Ultra automatic barrier for intensive usage, it is suitable for clear drive through gaps of up to 6 meters. It is fitted with a 24 V DC motor and comes with an extensive range of accessories which makes it suitable for almost any environment.


Features and benefits

  • Merak control panel which is U-Link compatible
  • Equipped with scenario programming for fast and precise installations
  • Solid aluminium casing for easy and safe programming and maintenance operations
  • Bespoke key for unlocking.

General information

Color

Grey

Red

White

Finish

Powder-coated

Material

Steel

Shape

Other

Length

Bespoke

Width

351 mm

Height

1039 mm

Warranty description

Two year

Uniclass

Pr_30_59_59_72 Rising arm vehicular barriersPrimary

CAWS

Q41/190 Vehicle access point barriers

Specification data - Rising arm vehicular barriers

Method of operation

Barrier control unit.

Span

4000 mm.

Arms

-

Type

Solid profile lifting pole.

Material

Aluminium.

Finish as delivered

-

Colour

As supplied.

Usage

5,000 movements per day.

Operating time

2.2 seconds.

Power supply

24 V.

Lock

Mechanical.

Ingress protection

IP54.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Third party certifications

CE Marking

CE Marking

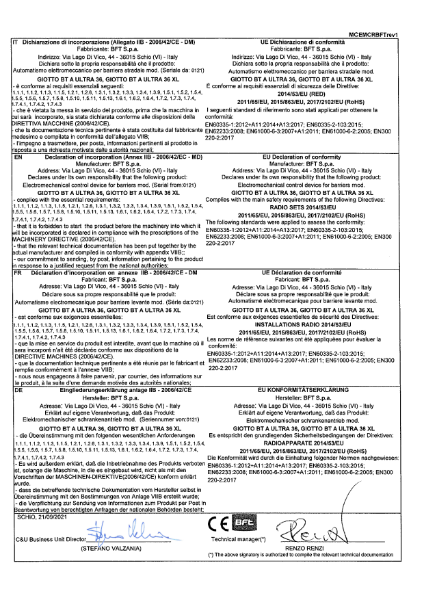

Declaration of Conformity

Literature

Giotto Ultra

Giotto Ultra

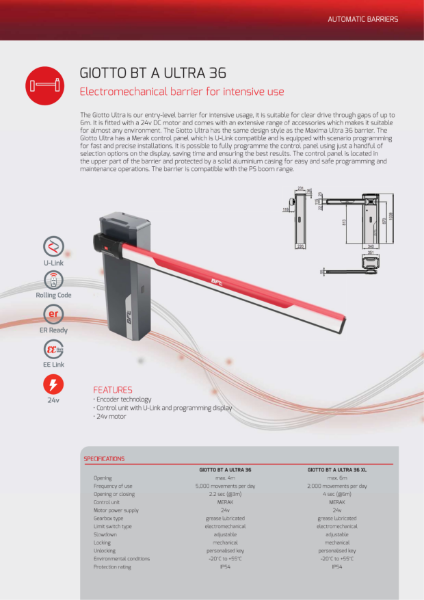

Data Sheet

Data Sheet
