Glass Skylight FE 3° - Rooflight

Verified by manufacturer 1 month ago

FE3-SX-O: Opening for daily ventilation

Lamilux Rooflights Ltd Variant:
Third party certifications:
  • TUV - Safety and Quality Report

    Certificate type

  • EPD

    EPD

    Certificate type

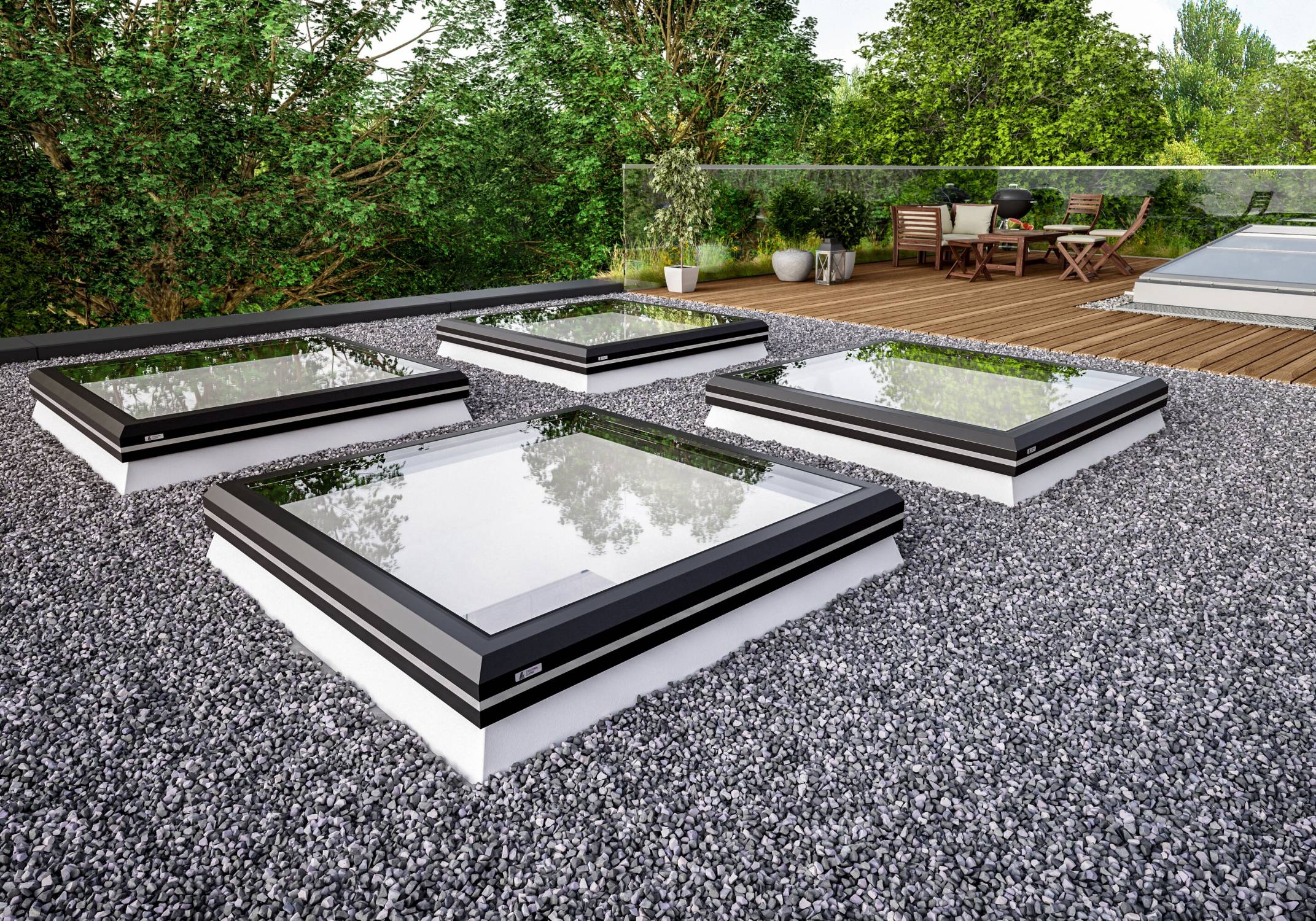

Aluminium framed glass skylight / rooflight with GRP upstand.

Jump to:
01284 749051 Website

Application

Suitable for high end residential and administration buildings.

Description

The Glass Skylight FE 3° is the flat aluminium framed modular skylight with a 3° inclination built into the framework for natural drainage of water and dirt from the rooflight. It features a flush glass to frame edge detail both internally and externally, boasting a visually appealing seamless design to compliment your choice of rooflight framework RAL colour.


The Glass Skylight FE benefits from enhanced isothermal characteristics in the overall rooflight construction – this results in no condensation whilst achieving maximum energy efficiency and thermal insulation alongside excellent air tightness values.


Glass Skylight FE Features and benefits:

  • Thermally broken “isothermally balanced” aluminium frame free of thermal bridges saving heating costs.
  • 3° inclined upper part to allow water and dirt to run off the rooflight naturally.
  • Glazing structurally bonded into the rooflight frame giving a flush edge which ensures water drainage and removal of build-up of dirt and debris at the cill.
  • All drives and skylight components are integrated within the framework giving an aesthetic elegant design.
  • GRP heat-insulated upstand with seamless silk-white interior finish removes the need of internal plastering.
  • Delivered as fully pre-assembled rooflight with PVC cap flashing included as standard for quick and easy installation on site by others.

General information

Color

Grey

Manufacturer guidance

Non-standard framework colours are available on request.

Finish

Powder-coated

Material

Glass

Aluminium

Glass Reinforced Plastic (GRP)

Shape

Square

Rectangle

Length

1000 mm

1200 mm

Width

1000 mm

1200 mm

1500 mm

2000 mm

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary
Pr_30_59_98_03 Aluminium frame roof window units

CAWS

L10/45 Rooflights

L10/460 Rooflights

L10/490 Roof ventilators

Product range

Glass rooflights

Specification data - Framed rooflights

Form

Flat.

Size

1000 x 1000 mm.

Guidance for specification option:

FE3-S7.

1200 x 1200 mm.

Guidance for specification option:

FE3-S14.

1000 x 1500 mm.

Guidance for specification option:

FE3-S8.

1000 x 2000 mm.

Guidance for specification option:

FE3-S9.

Manufacturer guidance

Structural roof opening size. Non-standard sizes are available on request.

Product performance

-

Whole window U-value

1.1 W/m2K.

Frame

-

Material

Aluminium.

Finish

-

Coating

PPC coated.

Colour

Anthracite grey (RAL 7016).

Other.

Guidance for specification option:

Non-standard framework colours are available on request. Consult manufacturer and insert requirements.

Glazing or infill

-

Type

Glazed thermal insulating glass.

Guidance for specification option:

6 mm toughened safety glass / 20 mm cavity/ 9.5 mm laminated safety glass.

Ug=1.1 W/m²k. Non-standard glazing options are available on request.

Construction

Double skin.

Colour

Clear.

Integral kerb

300 mm high fully insulated GRP upstand.

Guidance for specification option:

Factory fitted.

Operation

-

Type

Powered, electric.

Guidance for specification option:

 Via 230 v (un-concealed) chain drive - 300 mm stroke length.

Non-standard motor options are available on request.


Non-standard motor options are available on request.

Accessories

None (standard).

Guidance for specification option:

Non-standard options are available on request.

Upstand

300 mm high fully insulated GRP upstand - factory fitted.

Guidance for specification option:

Non-standard upstand options are available on request.

Resistance to wind load

To EN 12211, C5.

Watertightness

To EN 12208, RE1200 rating, Class E.

Guidance for specification option:

1200 Pascals.

Air permeability

Class AE 1950. Assembly airtight (including vents) to Class 4, EN 12207.

Sound insulation

Rwp 38 dB.

Light transmission

80%.

SolarTransmittance

0.62.

Pitch

3° inclination built into rooflight framework.

Standard

Non-fire- and/ or smoke-rated windows to EN 14351-1:2006+A1:2010.

Standard

CWCT, TN 92 Class 2.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Material

Glass

Aluminium

Glass Reinforced Plastic (GRP)
