Glass Skylight Pyramid / Hipped - rooflight - Rooflight / Skylight

Name: Glass Skylight Pyramid / Hipped - rooflight - Rooflight / Skylight
Brand: Lamilux Rooflights Ltd
SKU: k7tFU8ZaUkmQHNz2QGS4Uc

Verified by manufacturer 10 days ago

FEP-SX-O

Lamilux Rooflights Ltd

Third party certifications:

TUV - Safety and Quality Report
Certificate type
EPD
Certificate type

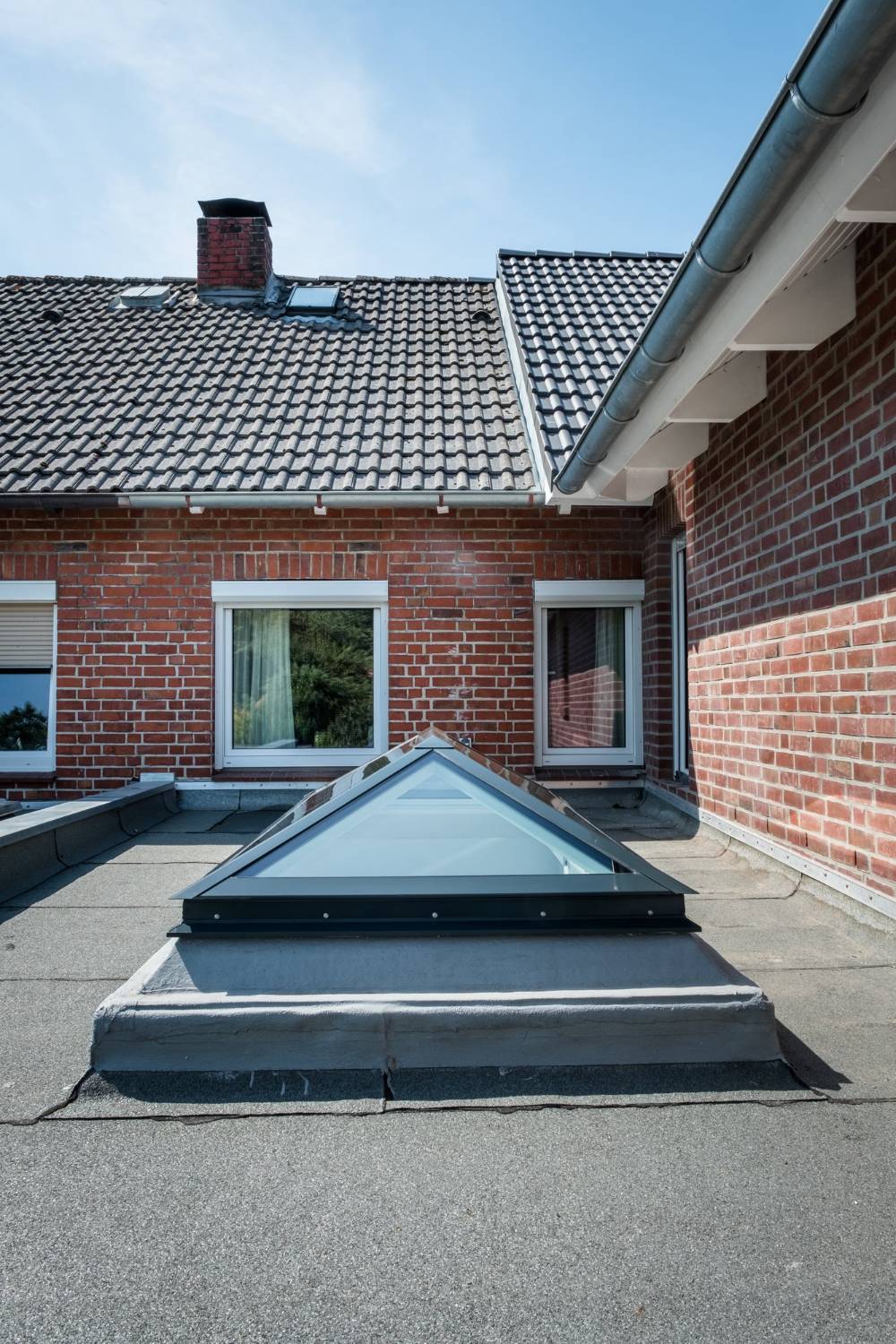

Pyramid or hipped aluminium framed rooflight/ roof windows for flat roofs.

Jump to:

01284 749051 Website

Application

Suitable for residential applications.

Description

The Glass Skylight FE pyramid or hipped shaped rooflight features high levels of wind and rain resistance and enhanced isothermal characteristics in the overall construction.

This range achieves maximum energy efficiency and thermal insulation alongside excellent air tightness values. Suitable for flat roof residential and administrative or school building projects the Glass Skylight FE Pyramid / Hipped is delivered as a fully pre-assembled unit with its GRP upstand, which ensures a quick and easy installation.

Glass Skylight Pyramid Features and benefits:

Thermally broken “isothermally balanced” aluminium rooflight frame free of thermal bridges saving heating costs.
Inclined pyramid/hipped shape for an unusual striking architectural feature.
GRP heat-insulated upstand with seamless silk-white interior finish removes the need of internal plastering.
Delivered as fully pre-assembled rooflight with PVC cap flashing included as standard for quick and easy installation on site by others.

General information

Color	Grey Manufacturer guidance Non-standard framework colours are available on request.
Finish	Powder-coated
Material	Aluminium Glass
Shape	Rectangle Square
Length	1000 mm 1200 mm
Width	1000 mm 1200 mm 1500 mm 2000 mm
Height	300 mm

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary Pr_30_59_98_03 Aluminium frame roof window units
CAWS	L10/45 Rooflights L10/460 Rooflights

Product range	Glass rooflights

Specification data - Framed rooflights

Form	Opening for daily ventilation. Guidance for specification option: Non-standard motor options are available on request.
Size	1000 x 1000 mm. Guidance for specification option: FEP-S7. 1000 x 1500 mm. Guidance for specification option: FEP-S14. 1000 x 2000 mm. Guidance for specification option: FEP-S8. 1200 x 1200 mm. Guidance for specification option: FEP-S9. Manufacturer guidance Structural roof opening size. Non-standard sizes are available on request.
Product performance	-
Whole window U-value	1.2 W/m2K.
Frame	-
Material	Aluminium.
Finish	-
Coating	PPC coated.
Colour	Anthracite grey (RAL 7016). Other. Guidance for specification option: Non-standard framework colours are available on request. Consult manufacturer and insert requirements.
Glazing or infill	-
Type	Glazed thermal insulating glass. Guidance for specification option: 6 mm toughened safety glass/ 20 mm cavity/ 9.5 mm laminated safety glass. Ug=1.1 W/m²k. Non-standard glazing options are available on request.
Construction	Double skin.
Colour	Clear.
Integral kerb	300 mm high fully insulated GRP upstand. Guidance for specification option: Factory fitted.
Operation	-
Type	Powered, electric. Guidance for specification option: Via 230 v (un-concealed) chain drive - 300 mm stroke length. Non-standard motor options are available on request.
Accessories	None (standard). Guidance for specification option: Non-standard options are available on request.

Upstand	300 mm high fully insulated GRP upstand - factory fitted. Guidance for specification option: Non-standard upstand options are available on request.
Watertightness	To EN 12208, RE1200 rating, Class E. Guidance for specification option: Watertight to 1200 pascals.
Air permeability	Class AE 1950. Assembly airtight (including vents) to Class 4, EN 12207.
Sound insulation	Rwp 38 dB.
Light transmission	80%.
SolarTransmittance	0.62.
Pitch	30° Pyramid. Guidance for specification option: Standard. 45° Pyramid. Guidance for specification option: Optional.
Standard	CWCT, TN 92 Class 2.
