Glidevale Protect Fresh 100 Wall Ventilator - Through Wall Vent

Verified by manufacturer 5 months ago

BPD Building Product Design Ltd

Non-electric through wall vent provides controllable background ventilation

Jump to:
+44 (0)161 905 5700 Website

Application

Suitable for both new build and refurbishment applications.


Description

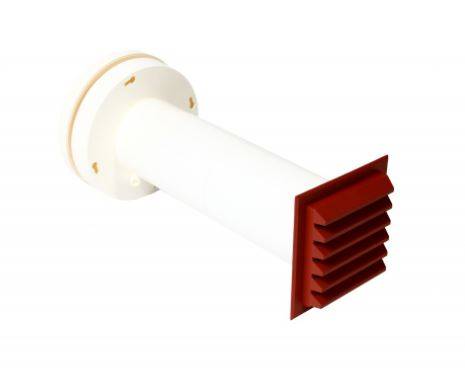

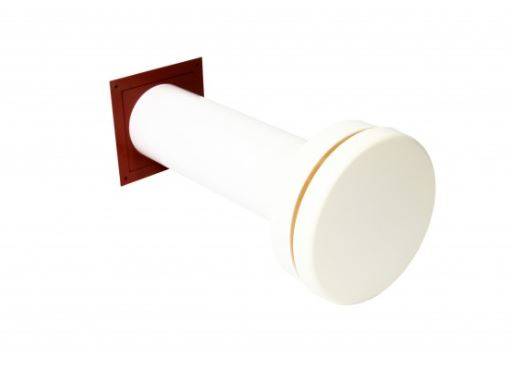

Glidevale Protect offers a range of manually controlled standard vents, which allow the user to open and close the vents as required. Fresh 100 a non-electric through-wall vent that provides controllable background ventilation. Supplied as a controllable internal vent, ducting and external grille.


Features and benefits:

  • Manual pull cord operation.
  • Trickle facility possible even when ‘closed’ to ensure fresh air ingress.
  • Filter and condensation protection incorporated.
  • Ventilation levels can be controlled to set levels.
  • Simple and easy to fit.
  • Ventilation equivalent area of 3760 mm².

General information

Color

White

Guidance for specification option:

Internal controller.

Other

Guidance for specification option:

Colour matched to RAL available (contact manufacturer for pricing).

Material

Acrylonitrile butadiene styrene (ABS)

Polyvinyl chloride (PVC)

Shape

Circle

Length

360 mm

Guidance for specification option:

Length of ducting

Width

99 mm

Guidance for specification option:

Diameter of ducting

Height

99 mm

Guidance for specification option:

Diameter of ducting

Uniclass

Pr_30_59_96_93 Ventilation gratingsPrimary

CAWS

F30/175 Cavity ventilators

F30/19 Cavity ventilators

Specification data - Ventilation gratings

Apertures

Circular hole.

Work sizes

140 x 140 mm, 99 x 360 mm; 184 x 56 mm.

Guidance for specification option:

External grille, sleeve; internal controller.

Material

Recyclable acrylonitrile butadiene styrene.

Colour

White/ terracotta.

Guidance for specification option:

White internal controller and terracotta external grille.

Other.

Guidance for specification option:

Colour matched to RAL available (contact manufacturer for pricing).

Trickle ventilation

Yes.

AirFlowRate

9.4 L/s.

Guidance for specification option:

@10Pa.

Sustainability data

Country of product manufacture

Sweden

Recyclability

-

Manufacturer guidance

Acrylonitrile butadiene styrene (ABS) is recyclable.

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Glidevale Protect Fresh Wall Ventilators

Glidevale Protect Fresh Wall Ventilators
