Glidevale Protect Fulmetal UniRoll - Ridge Ventilation System
Verified by manufacturer 5 months ago
Glidevale Protect UniRoll is a dry fix ridge and hip ventilation system with unions, designed to meet the requirements of BS 8612, BS 5534 and BS 5250.
Application
Used underneath ridge and hip tiles to provide high level ventilation.
Description

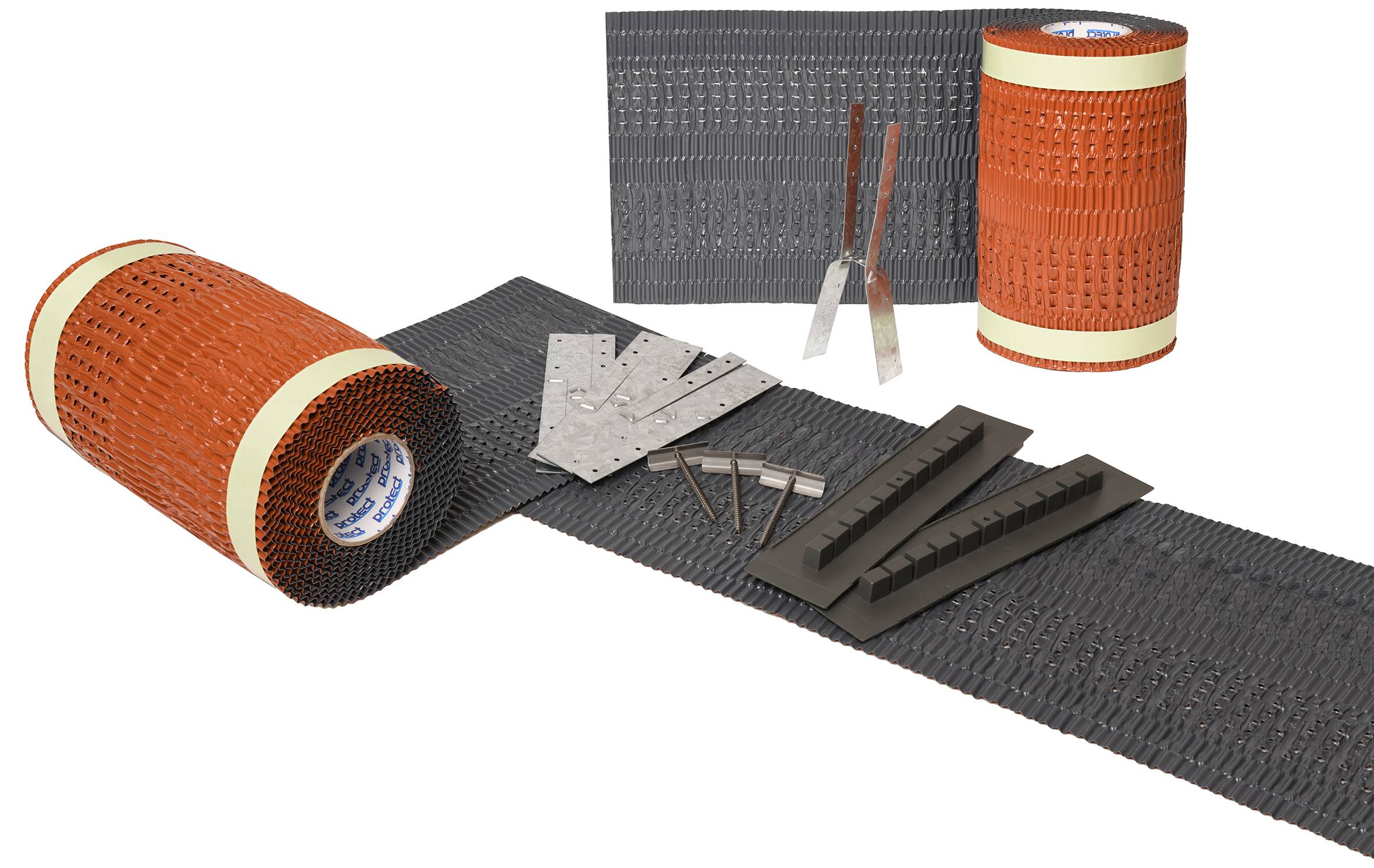

Glidevale Protect Fulmetal UniRoll with unions is a universal ventilated ridge and hip system. Featuring a roll manufactured completely in aluminium for high weather proof performance.
UniRoll is fully compliant with BS 8612 and BS 5534 while also providing the 5000 mm²/m high-level ventilation required by BS 5250. UniRoll fits the majority of ridges and hips.
General information
Color | Grey |
Finish | Other |
Material | Aluminium |
Shape | Rectangle Guidance for specification option: Supplied as a roll |
Length | 6000 mm |
Width | 300 mm |
Uniclass | |
CAWS | H65/55 Dry hips H65/505 Dry hips H65/700 Dry ventilated ridges H60/700 Dry ventilated ridges H60/75 Dry ventilated ridges H65/75 Dry ventilated ridges |
Specification data - Dry fixing ridges
Form | Duo-ridge ventilated dry fixing kits.Manufacturer guidanceUniRoll fits the majority of ridges and hips. |
Accessories | Integral accessories: Ridge fixing screws, ridge fixing plates, LDPE ridge unions, ridge batten straps. |
Standards | To BS 8612, BS 5534 and BS 5250. |
Ventilation | 5000 mm²/m. Guidance for specification option: Meets BS 5250 requirements for a dwelling size pitched roof. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium |
Literature

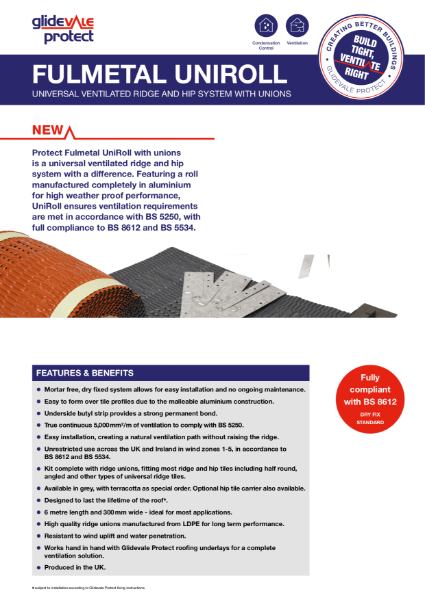

Glidevale Protect Fulmetal UniRoll Technical Literature
BS 5250:2021 Management of moisture in buildings
