Glidevale Protect HT5/ HT4/ HT3 Horizontal Trays - Cavity Trays
Verified by manufacturer 2 months ago
HT3 (three-brick module)
HT3 (three-brick module)

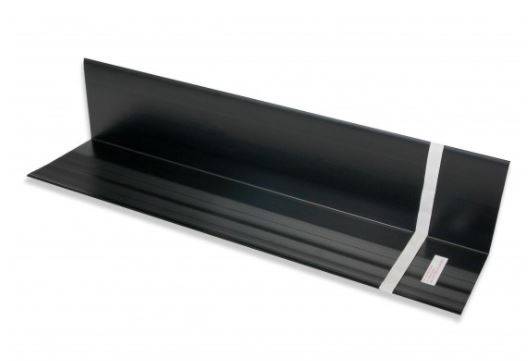

Self-supporting horizontal cavity trays.
Application
Suitable for use with brickwork, blockwork, reconstituted and natural stone, including:
- At top edge abutments of lower-level pitched roofs.
- Where flat roofs abut the outer leaf of a cavity wall.
- At changes of level where AT trays are not appropriate, e.g. on sloping ground.
- Where brickwork is built off a concrete slab or structural ring beam - at the base of masonry cavity walls.
- Over air bricks, ducting and other services that bridge the cavity.
Description
HT Horizontal Cavity Trays: self-supporting design that is suitable for cavity widths from 50 mm upwards without the need to build into the inner leaf.
Features and benefits:
- Self-supporting meaning no need to tie into the inner leaf.
- Designed with an exclusive weather protection lip.
- Constructed from durable ABS material.
- Designed to regular brick modules.
- Available in three lengths: 1125 mm-long (five-brick modules); 675 mm-long (three-brick modules) or 900 mm-long (four-brick modules).
- Easily cut to shape on site.
- Matching internal/ external corners, stop ends and other accessories available.
- HTR trays (specified separately) are available for refurbishment work and repairs to failed cavity trays; consult manufacturer for details.
General information
Color | Black |
Finish | Textured |
Material | Polypropylene |
Shape | Rectangle |
Length | 1125 mm 900 mm 675 mm |
Width | 151 mm |
Height | 145 mm |
Uniclass | |
CAWS | F30/370 Preformed cavity trays F30/56 Preformed cavity trays |
Specification data - Preformed cavity trays
Material | Polypropylene. |
To fit cavity width | 50–100 mm. |
Height | 145 mm. |
Length (effective) | 675 mm. |
Cavity cloaks | HT12 Right Hand Stop End.Guidance for specification option: Polypropylene. Size (h x l x w): 67 x 147 x 15 mm. HT11 Left Hand Stop End.Guidance for specification option: Polypropylene. Size (h x l x w): 67 x 147 x 15 mm. Not required. |
Attached lead flashings | Short lead.Long lead.Aluflash.Unleaded. |
Accessories | None.HT21 internal corner.Guidance for specification option: Internal corner. HT22 external corner.Guidance for specification option: External corner. MV650 perpend weep.Guidance for specification option: Allows water to drain from the trays in compliance with BS EN 1996-2 and BS 8215. Bed weep.Guidance for specification option: Allows water to drain from the trays in compliance with BS EN 1996-2 and BS 8215. 100 x 56 mm. Manufacturer guidanceSee Cavity cloaks for stop ends options. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
Literature

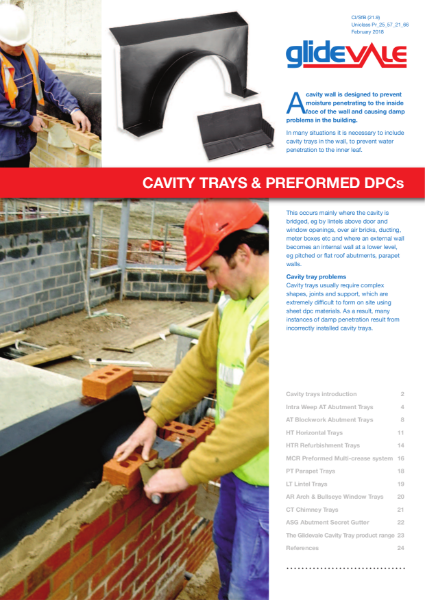

Glidevale Protect Cavity trays and Preformed DPC's
