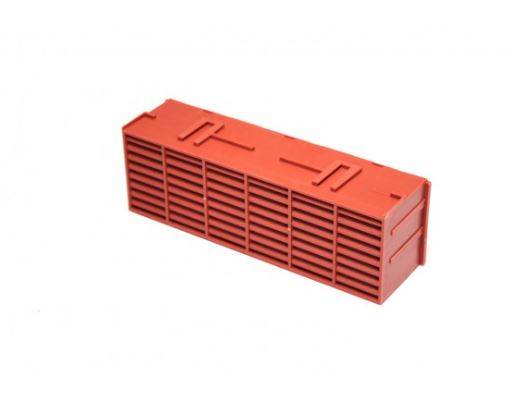

Glidevale Protect MV250 Airbrick - Airbrick

Verified by manufacturer 3 months ago

BPD Building Product Design Ltd

MV250 Airbrick for effective underfloor ventilation via the cavity wall to prevent the build-up of moisture.

Jump to:
+44 (0)161 905 5700 Website

Application

For effective underfloor ventilation via the cavity wall.

Description

Glidevale Protect have a range of underfloor, through-wall and cavity wall ventilation products that meet the requirements of the regulations and provide protection against driving rain, birds, rodents and large insects.


Features and benefits:

  • Ventilation area 8000 mm².
  • Colours: terracotta, buff, anthracite black.
  • Driving rain resistant.
  • Standard brick face dimensions.
  • Injection-moulded components.
  • Can be stacked in multiples.
  • Can be used with MV255 Straight Sleeve and MV251 Periscope.

General information

Color

Red

Guidance for specification option:

Terracotta

Yellow

Guidance for specification option:

Buff

Black

Guidance for specification option:

Anthracite

Material

Polypropylene

Shape

Rectangle

Length

215 mm

Width

57 mm

Height

65 mm

Uniclass

Pr_35_90_50_03 AirbricksPrimary

CAWS

F30/15 Airbricks in external walling

F30/160 Airbricks in external walling

Specification data - Airbricks

Standard

To BS 493.

Apertures

Rectangular grid.

Guidance for specification option:

Openings no taller than 4mm to prevent ingress of large/ nesting insects.

Work sizes

215 x 65 x 57 mm.

Guidance for specification option:

Standard brick face dimensions.

Material

Polypropylene.

Colour

Terracotta.

Buff.

Anthracite black.

Sustainability data

Material

Polypropylene

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Glidevale Protect Underfloor & Cavity Wall Vents

Glidevale Protect Underfloor & Cavity Wall Vents
