Application

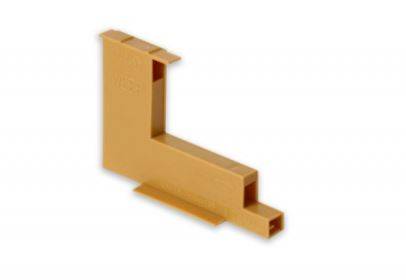

Can be used as a cavity wall vent and a cavity weep vent.  Fits into a single perpend joint. Suitable for brick, block and rendered walls.

Description

Glidevale have a range of underfloor, through-wall and cavity wall ventilation products that meet the requirements of the regulations and provide protection against driving rain, birds, rodents and large insects.


Features and benefits:

  • Cavity wall vent and weep in one unit.
  • Ventilation area 220 mm².
  • Colours: terracotta, buff, grey, clear.
  • Driving rain resistant with protection against large insect ingress.
  • Fits into a single perpend joint.
  • Can be used with brickwork or blockwork and in rendered walls.

General information

Color

Red

Guidance for specification option:

Terracotta.

Yellow

Guidance for specification option:

Buff.

Grey

Clear

Material

Polypropylene

Shape

Other

Guidance for specification option:

L shape.

Length

100 mm

Width

10 mm

Height

65 mm

Uniclass

Pr_35_90_50_62 Perpend joint plastics weepholesPrimary

CAWS

F30/8 Perpend joint plastics weep holes

F30/130 Perpend joint weep holes

Specification data - Perpend joint plastics weepholes

Colour

Terracotta.

Buff.

Grey.

Clear.

Airflow ventilation

220 mm².

Guidance for specification option:

Ventilation area.

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Glidevale Protect Underfloor & Cavity Wall Vents

Glidevale Protect Underfloor & Cavity Wall Vents
