Glidevale Protect Zytec® - Breathable Roofing Underlay
Verified by manufacturer 4 months ago
1500 mm-wide rolls
1500 mm-wide rolls
BM Trada
Certificate type
A type LR pitched roofing underlay with good vapour permeability, for use in warm and cold roof constructions.
Application
Suitable for use across all pitched cold and warm roofs to provide a secondary line of defence against wind-driven rain and snow.
Description
Protect Zytec® is a high performance type-LR roof underlay for use in warm and cold roof constructions. Its low vapour resistance helps to avoid the risk of harmful condensation whilst at the same time remaining completely airtight. Protect Zytec is both CE marked and BM TRADA certified. Where the highest performance of Protect VP400 Plus LR is not required but a heavier underlay than Protect VP300 is needed, Protect Zytec® meets the requirement.
Features and benefits:
- Highly vapour permeable with a performance better than required in BS 5250.
- Completely water and airtight with >2.0 mm water resistance.
- UV and heat-resistant.
- Does not generate nuisance noise under wind loading.
- BM TRADA independently certified.
- Helps to avoid condensation risk within the roofspace in accordance with BS 5250 and NHBC requirements.
- Easy to cut and handle.
- Achieves Zones 1-4 at 345 mm batten gauge (1519 Pa), when tested to Annex A of BS 5534, ensuring wide coverage across the UK and throughout Ireland
- Achieves unrestricted use for wind uplift Zones 1-5 at 310 mm batten gauge (2188 Pa) or when installed on sarking board.
General information
Color | Grey Guidance for specification option: Embossed grey upper and grey/white lower surface. Printed with green product branding for ease of identification. |
Finish | Embossed |
Material | Polypropylene |
Shape | Rectangle Guidance for specification option: Supplied as a Roll |
Length | 50000 mm |
Width | 1000 mm 1500 mm |
Uniclass | |
CAWS | H67/110 Metal roof tiling H67/5 Metal roof tiling H65/135 Ceramic slate roof tiling H65/125 Reconstituted slate roof tiling H65/115 Concrete roof tiling H65/105 Clay roof tiling H65/10 Reconstituted slate roof tiling H65/5 Roof tiling H64/110 Wood shingle/ shake roofing H64/10 Wood shingle/ shake roofing H62/145 Roof slating H62/125 Roof slating H62/105 Roof slating H62/3 Roof slating H61/105 Roof slating H61/5 Roof slating H60/120 Concrete roof tiling H60/105 Clay roof tiling H60/3 Roof tiling |
Product range |
Specification data - Vapour-permeable sheets
Standard | To BS EN 13859-1, BS 5250, BS 5534; NHBC STANDARDS. |
Performance characteristics | Water vapour resistance to BS EN ISO 12572; 0.15 MNs/g and 0.03 Sd. |
Class (minimum) | W1.Guidance for specification option: >2.0 m hydrostatic head resistance. Manufacturer guidanceResistance to water penetration to BS EN 1928 |
Material | Polypropylene. |
Form | Non-woven, spun bonded.Guidance for specification option: Triple ply construction with waterproof and vapour permeable core, laminated and protected between two layers of non-woven spunbond material |
Third-party certification | BM TRADA Certificate. |
Weight (minimum) | 158 g/m².Guidance for specification option: 8.2 kg per roll (1000 mm wide) or 12.3 kg per roll (1500 mm wide). |
Thickness (minimum) | 0.72 mm. |
Reflective face | None. |
Tear strength | Manufacturer's standard. Guidance for specification option: 270 N: To EN 12310-1 with mods, along roll. 216 N: To EN 12310-1 with mods, across roll.. |
TensileStrength | Manufacturer's standard. Guidance for specification option:
|
Wind resistance | Zones 1–4. Guidance for specification option: Wind uplift resistance, at 345mm batten gauge & 600mm rafter centres. |
Flexibility at low temperature | -40°C. |
Roll width | 1500 mm. Guidance for specification option: 75 m² per roll. |
Roll length | 50 m. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
BM Trada

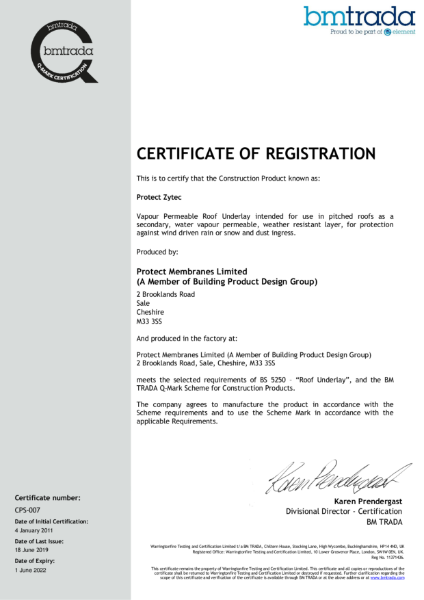

Protect Zytec BM TRADA Certificate No CPS-007
BM Trada

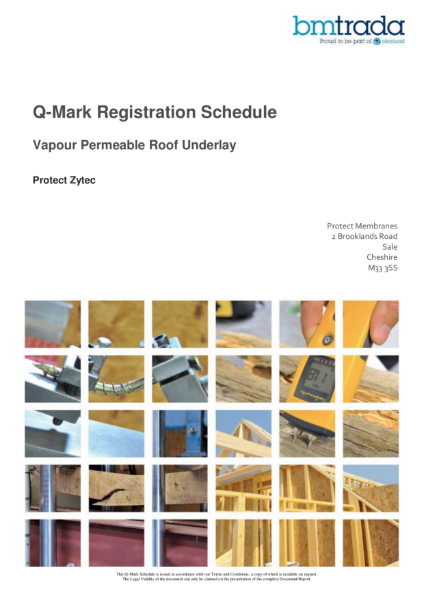

Protect Zytec BM TRADA Schedule No CPS-007
Literature
Glidevale Protect Zytec
BS 5250:2021 Management of moisture in buildings
Building Healthy Solutions for Offsite
