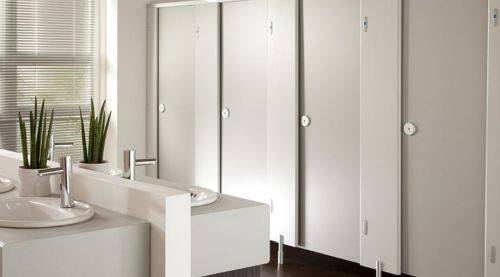

Grampian® HPL Toilet Cubicles
Verified by manufacturer 25 days ago
Constructionline
Certificate type
High pressure laminate (HPL) toilet cubicle for high traffic areas.
Application
Suitable for high traffic, dry bathroom environments.
Description
High pressure laminate (HPL) toilet cubicle for high traffic areas, manufactured to suit project requirements.
Features and benefits:
- Tamper-proof brackets and hinges can only be operated with an Allen or hex key (and not with a coin or screwdriver) to provide extra security.
- Available with an increased height configuration.
- Manufactured from HPL, which results in a durable and scratch-proof coating to the panels and doors which protects against moisture.
- Available in a wide range of colours.
Door width:
600 mm.
Fascias:
- Start/ end fascia: 150 mm.
- Middle fascia: 300 mm.
General information
Color | Beige Black Blue Green Grey Manufacturer guidanceVarious options available, consult manufacturer's literature and insert requirements. |
Finish | Anti-graffiti Woodgrain |
Material | Aluminium Guidance for specification option: Satin anodized aluminium (SAA). Fittings (including head-rail, brackets, adjustable cubicle legs, heavy-duty hinges and cubicle latches). High pressure laminate (HPL) |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Product range |
Specification data - Panel cubicle systems
Panels | High pressure laminate (HPL).Guidance for specification option: 19 mm. |
Pilasters | Manufacturer's standard.Post-formed.Guidance for specification option: On request. |
Doors | 19 mm High pressure laminate (HPL).Guidance for specification option: 19 mm. Door width: 600 mm. |
Hardware | Head-rail, brackets, adjustable cubicle legs, heavy-duty hinges and cubicle latches.Guidance for specification option: Satin anodized aluminium (SAA). Manufacturer guidanceFittings |
Wall panel | Not required. Full-height. Guidance for specification option: Consult manufacturer and insert requirements. Half-height. Guidance for specification option: Consult manufacturer and insert requirements. |
Edging | 2 mm solid polyvinyl chloride (PVC). Post-formed. |
Partition height | 1800 mm. Guidance for specification option: Standard. 2000 mm. Guidance for specification option: On request. |
Partition depth | 1500 mm. Guidance for specification option: Standard. Bespoke. Guidance for specification option: Insert requirement, available up to 1500 mm. |
Overall cubicle height | 1955 mm. Guidance for specification option: Standard. Includes 155 mm floor clearance. 2100 mm. Guidance for specification option: On request. Includes 100 mm floor clearance. Bespoke. Guidance for specification option: Insert requirement. |
Partitions | Guidance for specification option: Various options available, consult manufacturer's literature and insert requirements. |
Doors | Guidance for specification option: Various options available, consult manufacturer's literature and insert requirements. |
Edging | 2 mm solid polyvinyl chloride (PVC). Post-formed. |
Door width | 600 mm. |
Fascia | 150 mm; 300 mm. Guidance for specification option: Start / end fascia; middle fascia. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: Satin anodized aluminium (SAA). Fittings (including head-rail, brackets, adjustable cubicle legs, heavy-duty hinges and cubicle latches). High pressure laminate (HPL) |
Manufacturing plant location | |
Expected Life | Ten year |
Third party certifications
Constructionline
Constructionline Silver
Literature
Grampian Specification Guide
