Grovebury Cloaked Verge
Verified by manufacturer 7 months ago
Right Hand - 7274
Right Hand - 7274

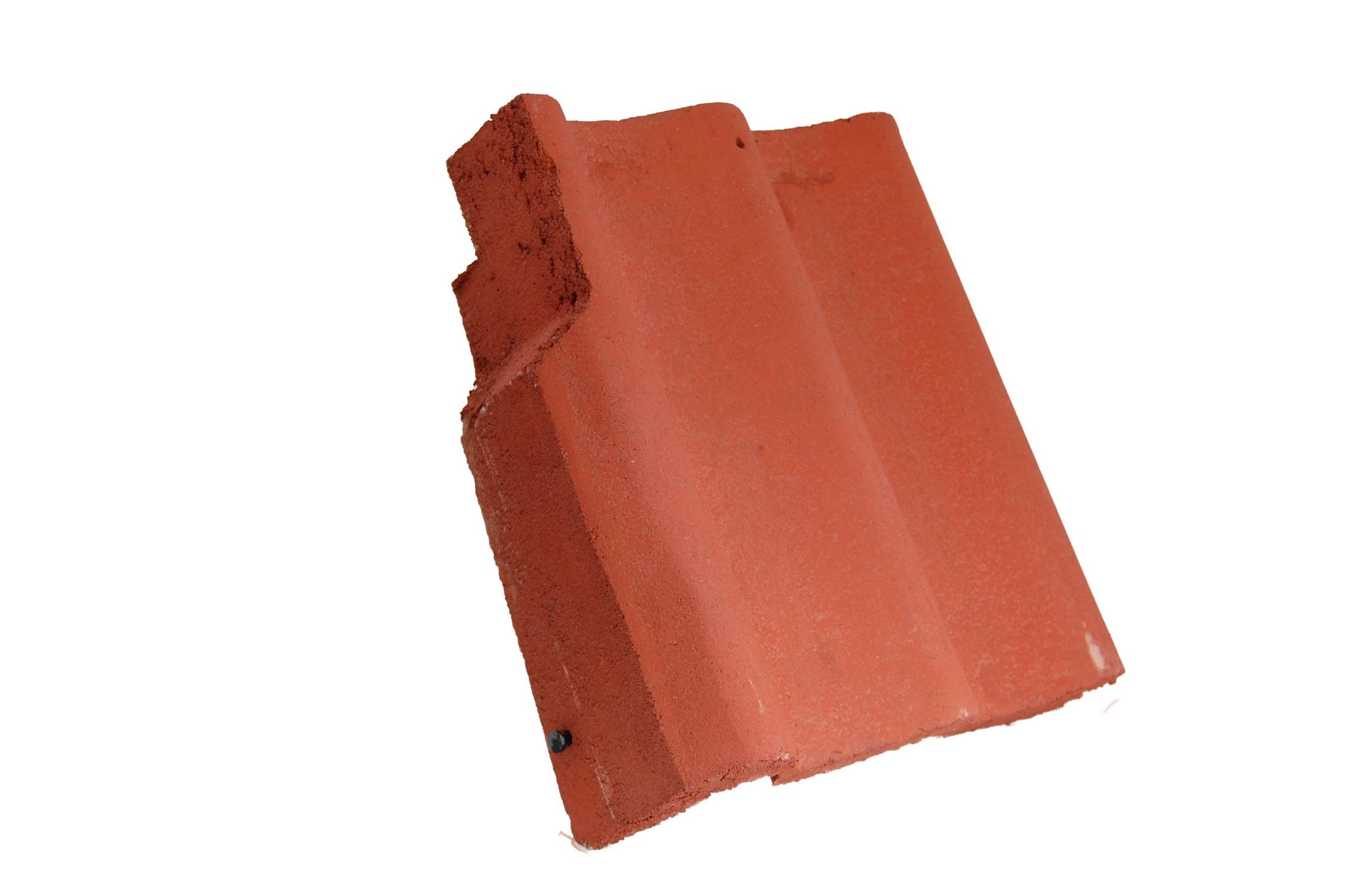

Cloaked verge system.
Application
Suitable for use with Grovebury tiles.
Description
Cloaked verge system. The system continues the tiling over the gable end using a one piece concrete tile. The system is mechanically fixed, eliminating the need for mortar bedding.
Features and benefits:
- Maintenance free.
- High resistance to wind uplift.
- Provides a neat finish to the verge.
General information
Color | Red Grey Black Brown Orange |
Finish | Smooth |
Material | Concrete |
Shape | Other |
Length | 418 mm |
Width | 365 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | H65/51 Cloaked verges |
Specification data - Concrete tile verge fittings
Form | Cloaked verge tiles. |
Colour | Brown (02).Terracotta (34).Rustic Red (78).Slate Grey (30).Antique Red (03).Tudor Brown (36).Charcoal Grey (77).Breckland Black (53).Farmhouse Red (39).Breckland Brown (52). |
Accessories | Half Tile - 7770.Guidance for specification option: 182 mm wide. |
Fixing | Mechanically fixed. |
Pitch | Manufacturer guidance
|
Head-lap | 125 mm. Guidance for specification option: Maximum. Manufacturer guidanceMinimum, dependent on finish: 75–100 mm, specifier to detail. |
Type | Right hand. |
Width | 315 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2014 | 1 |
 IFC | IFC2X3 | 1 |
