Guard Angel - Edge Protection Systems - Safety Guard Rail Edge Protection

Verified by manufacturer 4 months ago

Folding freestanding

Bettersafe International Variant:

Range of freestanding and fixed guardrails for a variety of work environments.

Jump to:
+ 44 (0)1260 217437 Website

Application

Guardrails for a range of for a variety of work environments.

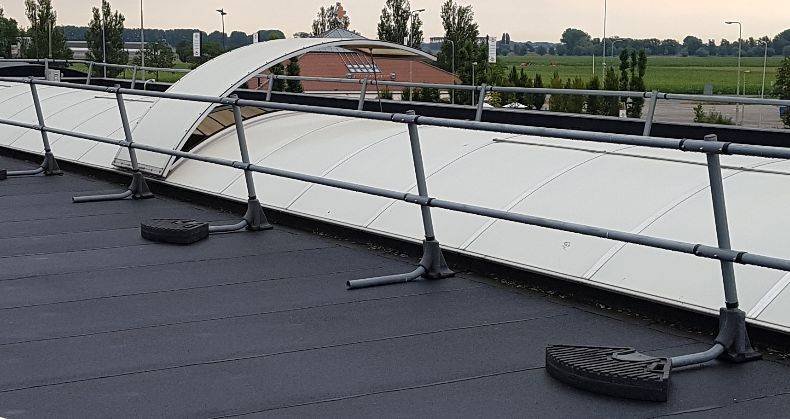

  • Freestanding (with counterweights).
  • Top fix, suitable for the majority of metal profiled roofs.
  • Parapet fixed.
  • Non-pitched models available in folding versions.

Description

Range of freestanding and fixed guardrails for a variety of work environments.


Features and benefits:

  • Lightweight, high quality construction.
  • Metal components manufactured completely from MAGNATube®.
  • Pre-galvanized for extra protection and increased life expectancy.
  • Long spans between vertical supports.
  • Rapid installation.
  • Flexible enough to use on most roof types.
  • Uses recycled plastics in counterweights.
  • Aesthetically pleasing with a smooth, streamlined finish.

Independently tested to:

  • BS EN 13374:2019 Class A and Class B;
  • BS EN 14122-3: 2016;
  • BS 13700:2021.

General information

Color

Silver

Finish

Galvanized

Guidance for specification option:

MAGNAtube® zinc/aluminium/magnesium coating.

Material

Steel

Guidance for specification option:

MAGNAtube®.

PVC

Guidance for specification option:

Counterweight (recycled).

Shape

Other

Length

Bespoke

Width

Bespoke

Height

1100 mm

Warranty description

25 year

Uniclass

Ss_25_15_60_53 Metal pedestrian parapet systemsPrimary
Ss_25_15_60_52 Metal modular barrier systems

CAWS

L30/560 Proprietary balustrades

L35/170 Guarding system

L30/55 Proprietary balustrades

SKU Code

Guard Angel

Specification data - Metal pedestrian parapet systems

Classification data

Standard

To EN 13374:2013; EN 14122-3:2016; BS 13700:2021.

Preparatory work

To system manufacturer’s recommendations.

Posts

GA-014 upper legs with folding lower legs.

Guidance for specification option:

  • GA014: 54 mm diameter tubular section, 810 mm high with 300 mm wide crosspieces.
  • GA-026: 47.62 mm diameter tubular section, 520 mm overall height/ depth, 145 mm wide.

Manufacturer guidance

To be placed every 2500 mm.

Post foundations

GA-002 counterweights.

Guidance for specification option:

Recycled PVC, to be placed at ands and 5 m intermediate intervals.

Overall dimensions: Width: 780 mm; depth: 450 mm; height: 100 mm.

Rails

GA-003 cross rails.

Guidance for specification option:

47.62 mm diameter tubular section, 2500 mm long per section.

System accessories

None.
GA-005 D-ends.

Guidance for specification option:

47.62 mm diameter tubular section, 500 mm overall high, 450 mm deep.

GA-004 90° corners.

Guidance for specification option:

54 mm diameter tubular section, 275 mm overall height/ depth.

GA-007 variable corners.

Guidance for specification option:

202° adjustability range.

GA-008 self-closing gate.

Guidance for specification option:

550 mm wide overall, with one-way catch, boxed return spring and clamping system.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

A1–A3 ('Production stage')

Normalized unit

1.37 kg CO₂ eq/kg

Declared unit

1.37 kg CO₂ eq/kg

Self-declared

Lower emissions

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %
