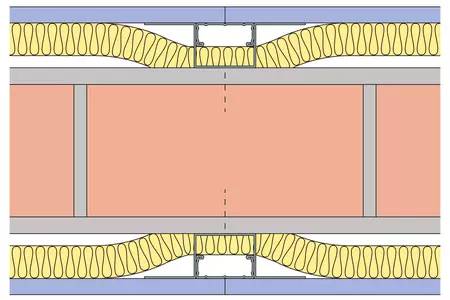

103mm solid brick wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to both sides to give 35mm cavities with 25mm Isover Acoustic Partition Roll (APR 1200) in the cavities clad with one layer of Gyproc SoundBloc 12.5mm.

General information

Finish

-

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Uniclass

Ss_25_25_45_35 Gypsum board wall lining systemsPrimary

CAWS

K10/165 Wall lining system (metal framing)

K10/35 Wall lining system (metal framing)

Product range

Wall linings / GypLyner Single

Specification data - Gypsum board wall lining systems

Support

Bracket type: Gypframe GL2 Bracket.
Fixing method: Gypframe GL11 GypLyner Anchor.
Channel connector: Gypframe GL3 Channel Connector.
Base channel: Gypframe GL8 Track.
Head channel: Gypframe GL8 Track.
Stud: Gypframe GL1 Lining Channel.

Insulation

Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).

Linings

Board side 1, Layer 1: Gyproc SoundBloc 12.5mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm.
Bracket fixing: British Gypsum Wafer Head Drywall Screws 13mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.
Fixing T: Gypframe GFT1 Fixing 'T'.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.
Thermal sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/wall-linings/GypLyner-Single/B226010-EN#details

Sound insulation

BS 2750-3, 60 Rw dB / 42 Rw + Ctr dB

Strength grade

Not Stated

Background

Background: Plaster (13mm), 103mm Solid brick wall (density 1700kg/m³), Plaster (13mm)
