GypWall Resilient - A316018 (B) (EN)
Verified by manufacturer 7 months ago
Description

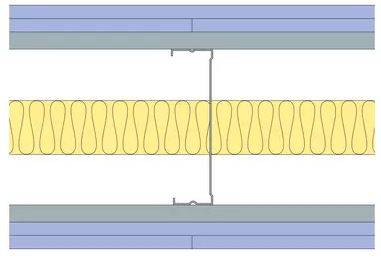

Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 146 S 50 'C' Studs at 600mm centres with Gypframe RB1 Resilient Bar at 600mm centres to both sides. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 5700mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 228 mm |
Height | 5700 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 148 DC 60 Deep Flange Floor & Ceiling Channel. |
Insulation | Insulation, Layer 1: 50mm Isover Acoustic Partition Roll (APR 1200). |
Resilient layer | Horizontal bar type, Side 1: Gypframe RB1 Resilient Bar. |
Linings | Board side 1, Layer 1: Gyproc SoundBloc 12.5mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Resilient/A316018-B-EN#details |
Fire resistance | BS EN 1364-1, 60 / 60 Integrity / Insulation |
Sound insulation | BS EN ISO 140-3, 64 Rw dB / 58 Rw + Ctr dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 5700mm |
Partition thickness | 228mm |
