GypWall Shaft - A306009 (B) (EN)
Verified by manufacturer 4 months ago
Description

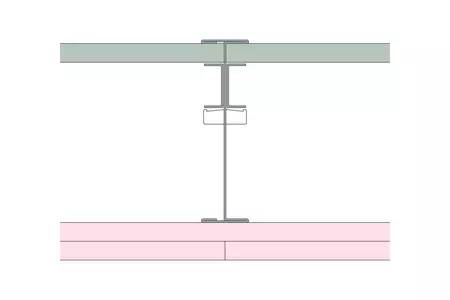

Gypframe 146 TI 90 Tabbed ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G102 Retaining Channel. Two layers of Gyproc FireLine 15mm to non-shaft side. For heights up to 6000mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel |
Width | 178 mm |
Height | 6000 mm |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
SKU Code | SP00010922 |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 148 DC 60 Deep Flange Floor & Ceiling Channel. Head channel: Gypframe 148 EDC 80 Extra Deep Flange Floor & Ceiling Channel. Stud: Gypframe 146 TI 90 Tabbed 'I' Stud. Retaining channel: Gypframe G102 Retaining Channel. |
Linings | Core: Gyproc CoreBoard 19mm. Board side 1, Layer 1: Gyproc FireLine 15mm. Board side 1, Layer 2: Gyproc FireLine 15mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Jack-Point Screws 35mm. Screws side 1, Layer 2: British Gypsum Jack-Point Screws 41mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. Horizontal joint: Gypframe GA3 Steel Angle & Gyproc CoreBoard 19mm. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/shaftwall/GypWall-Shaft/A306009-B-EN#details |
Fire resistance | BS EN 1364-1, 90 / 90 Integrity / Insulation |
Sound insulation | BS 2750-3, 48 Rw dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 6000mm |
Partition thickness | 178mm |
