GypWall Shaft - A306041 (B) (EN)
Verified by manufacturer 7 months ago
Description

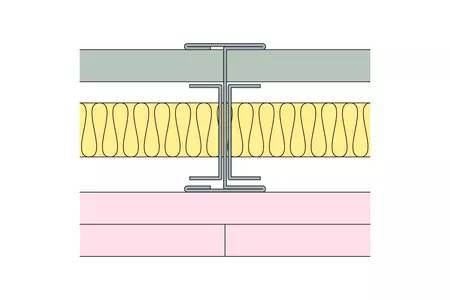

Gypframe 70 I 70 ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G110 Retaining Channel. Two layers of Gyproc FireLine 12.5mm to non-shaft side and 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4400mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 97 mm |
Height | 4400 mm |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel. |
Insulation | Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200). |
Linings | Core: Gyproc CoreBoard 19mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Jack-Point Screws 35mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/shaftwall/GypWall-Shaft/A306041-B-EN#details |
Fire resistance | BS EN 1364-1, 60 / 60 Integrity / Insulation |
Sound insulation | BS 2750-3, 44 Rw dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 4400mm |
Partition thickness | 97mm |
