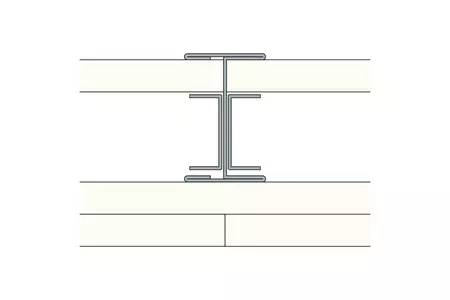

Gypframe 60 I 70 ā€˜Iā€™ Studs at 600mm centres with Glasroc F FireCase 20mm between studs, secured by Gypframe G102 Retaining Channel. Two layers of Glasroc F FireCase 15mm to non-shaft side. For heights up to 4200mm.

General information

Finish

-

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Width

92 mm

Height

4200 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/30 Metal stud

K10/125 Metal stud partition system

Product range

Shaftwall / GypWall Shaft

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 62 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Head channel: Gypframe 62 JC 70 'J' Channel.
Stud: Gypframe 60 I 70 'I' Stud.
Retaining channel: Gypframe G102 Retaining Channel.

Linings

Core: Glasroc F FireCase 20mm.
Board side 1, Layer 1: Glasroc F FireCase 15mm.
Board side 1, Layer 2: Glasroc F FireCase 15mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Jack-Point Screws 35mm.
Screws side 1, Layer 2: British Gypsum Jack-Point Screws 41mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.
Horizontal joint: Gypframe GA3 Steel Angle & Glasroc F FireCase 20mm.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/shaftwall/GypWall-Shaft/G306003-A-EN#details

Fire resistance

BS EN 1364-1, 90 / 90 Integrity / Insulation

Sound insulation

BS EN ISO 140-3, 41 Rw dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

4200mm

Partition thickness

92mm
