GypWall Shaft - G306039 (A) (EN)
Verified by manufacturer 4 days ago
Description

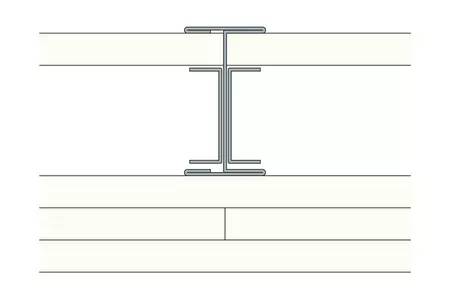

Gypframe 70 I 70 ‘I’ Studs at 600mm centres with Glasroc F FireCase 20mm between studs, secured by Gypframe G110 Retaining Channel. Three layers of Glasroc F FireCase 15mm to non-shaft side. For heights up to 4200mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel |
Width | 117 mm |
Height | 4200 mm |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel. |
Linings | Core: Glasroc F FireCase 20mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Jack-Point Screws 35mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/shaftwall/GypWall-Shaft/G306039-A-EN#details |
Fire resistance | BS EN 1364-1, 120 / 120 Integrity / Insulation |
Sound insulation | BS EN ISO 140-3, 42 Rw dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 4200mm |
Partition thickness | 117mm |
