GypWall Single Frame - A206091 (EN)
Verified by manufacturer 7 months ago
Description

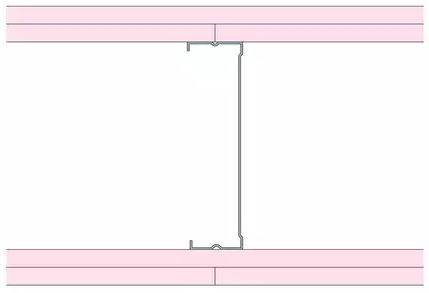

Two layers of Gyproc FireLine 12.5mm each side of Gypframe 146 S 50 'C' Studs at 600mm centres. For heights up to 4200mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel |
Width | 198 mm |
Height | 4200 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel. |
Linings | Board side 1, Layer 1: Gyproc FireLine 12.5mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206091-EN#details |
Fire resistance | BS EN 1364-1, 120 / 120 Integrity / Insulation |
Sound insulation | BS EN ISO 140-3, 50 Rw dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 4200mm |
Partition thickness | 198mm |
