Description

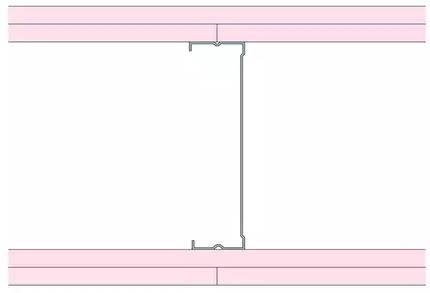

Two layers of Gyproc FireLine 12.5mm each side of Gypframe 146 S 50 'C' Studs at 600mm centres with 2mm Thistle MultiFinish on each side. For heights up to 4200mm.

General information

Finish

-

Manufacturer guidance

Finish coat, Side 1: Thistle MultiFinish.

Finish coat, Side 2: Thistle MultiFinish.

Material

Gypsum

Metal

Plasterboard

Steel

Width

202 mm

Height

4200 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Single Frame

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Head channel: Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Stud: Gypframe 146 S 50 'C' Stud.
Abutments and openings: Gypframe 146 S 50 'C' Stud.

Linings

Board side 1, Layer 1: Gyproc FireLine 12.5mm.
Board side 1, Layer 2: Gyproc FireLine 12.5mm.
Board side 2, Layer 1: Gyproc FireLine 12.5mm.
Board side 2, Layer 2: Gyproc FireLine 12.5mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 1, Layer 2: British Gypsum Drywall Screws 35mm.
Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 2, Layer 2: British Gypsum Drywall Screws 35mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.

Finish

Finish coat, Side 1: Thistle MultiFinish.
Finish coat, Side 2: Thistle MultiFinish.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206091S-EN#details

Fire resistance

BS EN 1364-1, 120 / 120 Integrity / Insulation

Sound insulation

BS EN ISO 10140-2, 51 Rw dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

4200mm

Partition thickness

202mm
