GypWall Single Frame - A206187S (EN)
Verified by manufacturer 7 months ago
Description

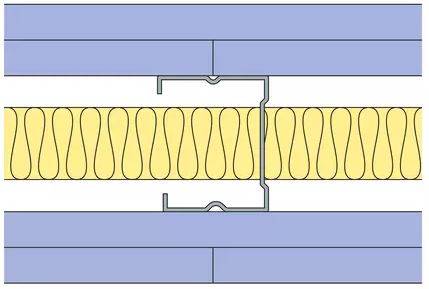

Two layers of Gyproc SoundBloc 15mm each side of Gypframe 48 S 50 'C' Studs at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 3000mm.
General information
Finish | Manufacturer guidanceFinish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 114 mm |
Height | 3000 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 50 FEC 50 Folded Edge Standard Floor & Ceiling Channel. |
Insulation | Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200). |
Linings | Board side 1, Layer 1: Gyproc SoundBloc 15mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | Finish coat, Side 1: Thistle MultiFinish. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206187S-EN#details |
Fire resistance | BS EN 1364-1, 90 / 90 Integrity / Insulation |
Sound insulation | BS EN ISO 10140-2, 54 Rw dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 3000mm |
Partition thickness | 114mm |
