GypWall Single Frame - A206276 (EN)
Verified by manufacturer 4 days ago
Description

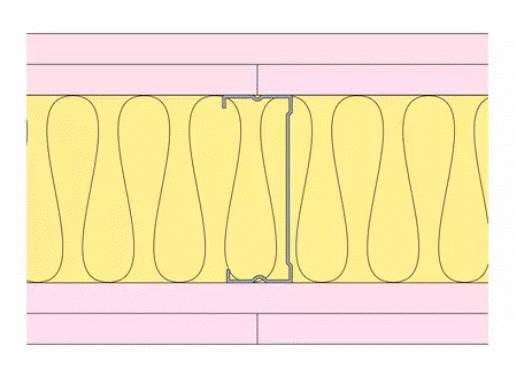

Two layers of Gyproc FireLine 15mm each side of Gypframe 92 S 50 'C' Studs at 600mm centres. 100mm Isover Modular Roll in the cavity. For heights up to 3000mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 154 mm |
Height | 3000 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. |
Insulation | Insulation, Layer 1: 100mm Isover Modular Roll. |
Linings | Board side 1, Layer 1: Gyproc FireLine 15mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206276-EN#details |
Fire resistance | BS EN 1364-1, 120 / 120 Integrity / Insulation |
Sound insulation | BS EN ISO 140-3, 53 Rw dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 3000mm |
Partition thickness | 154mm |
