Description

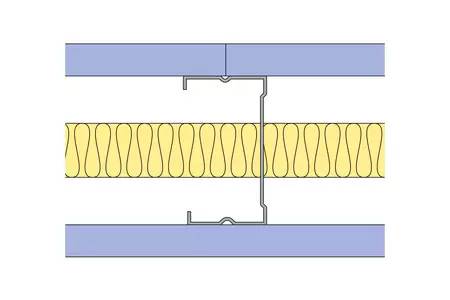

One layer of Gyproc SoundBloc F 15mm each side of Gypframe 70 S 50 'C' Studs at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 3800mm.

General information

Finish

-

Manufacturer guidance

Finish coat, Side 1: Thistle MultiFinish.

Finish coat, Side 2: Thistle MultiFinish.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Width

106 mm

Height

3800 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Single Frame

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Head channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Stud: Gypframe 70 S 50 'C' Stud.
Abutments and openings: Gypframe 70 S 50 'C' Stud.

Insulation

Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).

Linings

Board side 1, Layer 1: Gyproc SoundBloc F 15mm.
Board side 2, Layer 1: Gyproc SoundBloc F 15mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.
Fixing T: Gypframe GFT1 Fixing 'T'.

Finish

Finish coat, Side 1: Thistle MultiFinish.
Finish coat, Side 2: Thistle MultiFinish.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206302S-EN#details

Fire resistance

BS EN 1364-1, 60 / 60 Integrity / Insulation

Sound insulation

BS EN ISO 10140-2, 48 Rw dB

Strength grade

BS 5234-2, Heavy duty (HD)

Partition height

3800mm

Partition thickness

106mm
