GypWall Single Frame - A206308S (EN)

Name: GypWall Single Frame - A206308S (EN)
Brand: British Gypsum
SKU: q1errSQoHwWeSshAzBsaeB

Verified by manufacturer 5 days ago

British Gypsum

Jump to:

+44 (0)844 800 1991 Website

Description

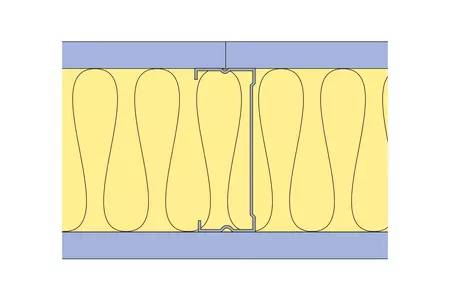

One layer of Gyproc SoundBloc F 15mm each side of Gypframe 92 S 50 'C' Studs at 600mm centres. 100mm Isover Modular Roll in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4000mm.

General information

Finish	- Manufacturer guidance Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
Material	Gypsum Metal Plasterboard Steel Glass mineral wool
Width	128 mm
Height	4000 mm

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/125 Metal stud partition system

Product range	Internal Partitions and Walls / GypWall Single Frame

Specification data - Gypsum board partition systems

Framing	Base channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Head channel: Gypframe 94 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Stud: Gypframe 92 S 50 'C' Stud. Abutments and openings: Gypframe 92 S 50 'C' Stud.
Insulation	Insulation, Layer 1: 100mm Isover Modular Roll.
Linings	Board side 1, Layer 1: Gyproc SoundBloc F 15mm. Board side 2, Layer 1: Gyproc SoundBloc F 15mm.
Fasteners	Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.
Joint treatment	Fixing strap: Gypframe GFS1 Fixing Strap. Fixing T: Gypframe GFT1 Fixing 'T'.
Finish	Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
System accessories	Sealant: Gyproc Sealant.
Execution	Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206308S-EN#details

Fire resistance	BS EN 1364-1, 60 / 60 Integrity / Insulation
Sound insulation	BS EN ISO 10140-2, 52 Rw dB
Strength grade	BS 5234-2, Heavy duty (HD)
Partition height	4000mm
Partition thickness	128mm
