GypWall Single Frame - A206A014 (EN)
Verified by manufacturer 7 months ago
Description

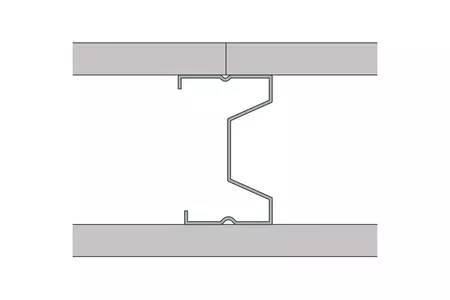

One layer of Gyproc WallBoard 15mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. For heights up to 4000mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel |
Width | 102 mm |
Height | 4000 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel. |
Linings | Board side 1, Layer 1: Gyproc WallBoard 15mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206A014-EN#details |
Fire resistance | BS EN 1364-1, 30 / 30 Integrity / Insulation |
Sound insulation | BS EN ISO 140-3, 38 Rw dB |
Strength grade | BS 5234-2, Medium duty (MD) |
Partition height | 4000mm |
Partition thickness | 102mm |
