GypWall Single Frame - A206A028S (B) (EN)
Verified by manufacturer 4 days ago
Description

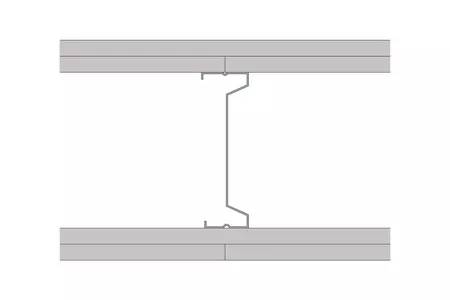

Two layers of Gyproc WallBoard 15mm each side of Gypframe 146 AS 50 AcouStuds at 600mm centres with 2mm Thistle MultiFinish on each side. For heights up to 5000mm.
General information
Finish | Manufacturer guidanceFinish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish. |
Material | Gypsum Metal Plasterboard Steel |
Width | 212 mm |
Height | 5000 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 148 DC 60 Deep Flange Floor & Ceiling Channel. |
Linings | Board side 1, Layer 1: Gyproc WallBoard 15mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | Finish coat, Side 1: Thistle MultiFinish. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206A028S-B-EN#details |
Fire resistance | BS EN 1364-1, 60 / 60 Integrity / Insulation |
Sound insulation | BS EN ISO 10140-2, 54 Rw dB / 47 Rw + Ctr dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 5000mm |
Partition thickness | 212mm |
