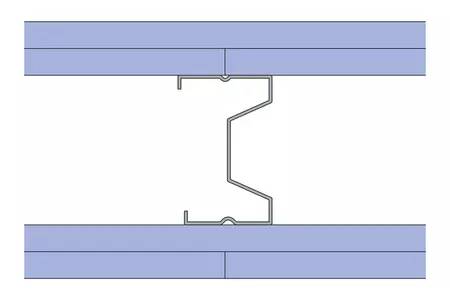

Two layers of Gyproc SoundBloc 15mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. For heights up to 4000mm.

General information

Finish

-

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Width

132 mm

Height

4000 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Single Frame

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Head channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Stud: Gypframe 70 AS 50 AcouStud.
Abutments and openings: Gypframe 70 S 50 'C' Stud.

Linings

Board side 1, Layer 1: Gyproc SoundBloc 15mm.
Board side 1, Layer 2: Gyproc SoundBloc 15mm.
Board side 2, Layer 1: Gyproc SoundBloc 15mm.
Board side 2, Layer 2: Gyproc SoundBloc 15mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 1, Layer 2: British Gypsum Drywall Screws 40mm.
Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 2, Layer 2: British Gypsum Drywall Screws 40mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206A167-EN#details

Fire resistance

BS EN 1364-1, 90 / 90 Integrity / Insulation

Sound insulation

BS EN ISO 140-3, 54 Rw dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

4000mm

Partition thickness

132mm
