Description

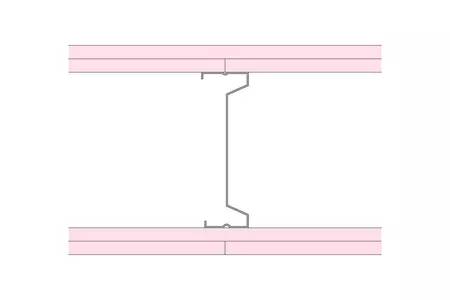

Two layers of Gyproc FireLine 15mm each side of Gypframe 146 AS 50 AcouStuds at 600mm centres. For heights up to 8100mm.

General information

Finish

-

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Width

208 mm

Height

8100 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Single Frame

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 148 EDC 80 Extra Deep Flange Floor & Ceiling Channel.
Head channel: Gypframe 148 EDC 80 Extra Deep Flange Floor & Ceiling Channel.
Stud: Gypframe 146 AS 50 AcouStud.
Abutments and openings: Gypframe 146 S 50 'C' Stud.

Linings

Board side 1, Layer 1: Gyproc FireLine 15mm.
Board side 1, Layer 2: Gyproc FireLine 15mm.
Board side 2, Layer 1: Gyproc FireLine 15mm.
Board side 2, Layer 2: Gyproc FireLine 15mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 1, Layer 2: British Gypsum Drywall Screws 40mm.
Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 2, Layer 2: British Gypsum Drywall Screws 40mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame/A206A180-C-EN#details

Fire resistance

BS EN 1364-1, 120 / 120 Integrity / Insulation

Sound insulation

BS EN ISO 140-3, 52 Rw dB / 47 Rw + Ctr dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

8100mm

Partition thickness

208mm
