Description

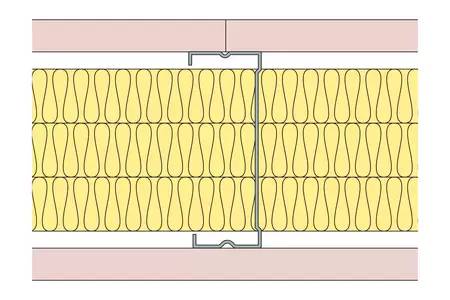

One layer of Gyproc DuraLine 15mm each side of Gypframe 92 S 60 'C' Studs at 600mm centres. Three layers of 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4000mm.

General information

Finish

-

Manufacturer guidance

Finish coat, Side 1: Thistle MultiFinish.

Finish coat, Side 2: Thistle MultiFinish.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Width

128 mm

Height

4000 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Single Frame Enhanced

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 94 DC 60 Deep Flange Floor & Ceiling Channel.
Head channel: Gypframe 94 DC 60 Deep Flange Floor & Ceiling Channel.
Stud: Gypframe 92 S 60 'C' Stud.
Abutments and openings: Gypframe 92 S 60 'C' Stud.

Insulation

Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).
Insulation, Layer 2: 25mm Isover Acoustic Partition Roll (APR 1200).
Insulation, Layer 3: 25mm Isover Acoustic Partition Roll (APR 1200).

Linings

Board side 1, Layer 1: Gyproc DuraLine 15mm.
Board side 2, Layer 1: Gyproc DuraLine 15mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm.
Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.
Fixing T: Gypframe GFT1 Fixing 'T'.

Finish

Finish coat, Side 1: Thistle MultiFinish.
Finish coat, Side 2: Thistle MultiFinish.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame-Enhanced/Q606057S-EN#details

Fire resistance

BS EN 1364-1, 60 / 60 Integrity / Insulation

Sound insulation

BS EN ISO 10140-2, 53 Rw dB

Strength grade

BS 5234-2, Severe duty (SD)

Partition height

4000mm

Partition thickness

128mm
