GypWall Single Frame Enhanced - X606A007 (EN)
Verified by manufacturer 4 months ago
Description

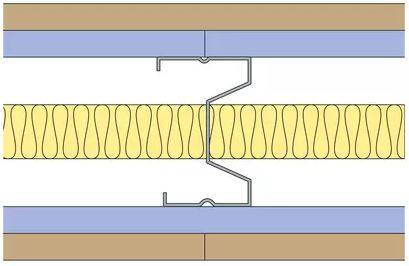

Inner layer of Gyproc SoundBloc 15mm with an outer layer of Rigidur H 12.5mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 127 mm |
Height | 4000 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
SKU Code | SP00016439 |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel. Head channel: Gypframe 72 DC 60 Deep Flange Floor & Ceiling Channel. Stud: Gypframe 70 AS 50 AcouStud. Abutments and openings: Gypframe 70 S 60 'C' Stud. |
Insulation | Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200). |
Linings | Board side 1, Layer 1: Gyproc SoundBloc 15mm. Board side 1, Layer 2: Rigidur H 12.5mm. Board side 2, Layer 1: Gyproc SoundBloc 15mm. Board side 2, Layer 2: Rigidur H 12.5mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 1, Layer 2: Rigidur Screws 40mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 2: Rigidur Screws 40mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Single-Frame-Enhanced/X606A007-EN#details |
Fire resistance | BS EN 1364-1, 60 / 60 Integrity / Insulation |
Sound insulation | BS EN ISO 140-3, 58 Rw dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 4000mm |
Partition thickness | 127mm |
