GypWall Staggered - A233006S (A) (EN)

Name: GypWall Staggered - A233006S (A) (EN)
Brand: British Gypsum
SKU: mZ8TFREkiXbo14e7gTrmhA

Verified by manufacturer 5 days ago

British Gypsum

Jump to:

+44 (0)844 800 1991 Website

Description

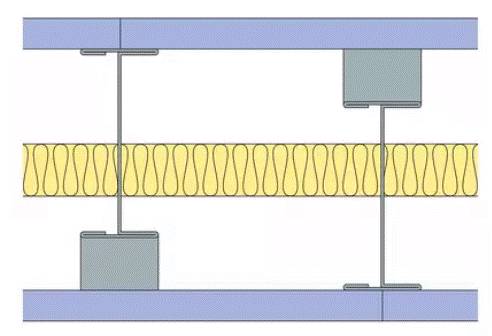

One layer of Gyproc SoundBloc 15mm each side of Gypframe 92 I 90 ‘I’ Studs in Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Gypframe SC2 Spacer Clips and alternate studs staggered in the channel at 300mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 4200mm.

General information

Finish	- Manufacturer guidance Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
Material	Gypsum Metal Plasterboard Steel Glass mineral wool
Width	182 mm
Height	4200 mm

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/125 Metal stud partition system

Product range	Internal Partitions and Walls / GypWall Staggered

Specification data - Gypsum board partition systems

Framing	Base channel: Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Head channel: Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Stud: Gypframe 92 I 90 'I' Stud. Abutments and openings: Gypframe 146 S 50 'C' Stud. Clips: Gypframe SC2 Spacer Clip.
Insulation	Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).
Linings	Board side 1, Layer 1: Gyproc SoundBloc 15mm. Board side 2, Layer 1: Gyproc SoundBloc 15mm.
Fasteners	Screws side 1, Layer 1: British Gypsum Jack-Point Screws 25mm. Screws side 2, Layer 1: British Gypsum Jack-Point Screws 25mm.
Joint treatment	Fixing strap: Gypframe GFS1 Fixing Strap. Fixing T: Gypframe GFT1 Fixing 'T'.
Finish	Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
System accessories	Sealant: Gyproc Sealant.
Execution	Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Staggered/A233006S-A-EN#details

Fire resistance	BS EN 1364-1, 30 / 30 Integrity / Insulation
Sound insulation	BS EN ISO 10140-2, 54 Rw dB
Strength grade	BS 5234-2, Medium duty (MD)
Partition height	4200mm
Partition thickness	182mm
