Description

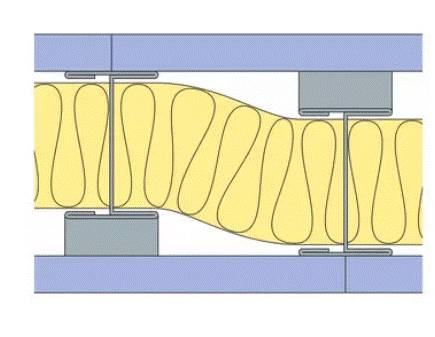

One layer of Gyproc SoundBloc 15mm each side of Gypframe 60 I 70 ‘I’ Studs in Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Gypframe SC1 Spacer Clips and alternate studs staggered in the channel at 300mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 3300mm.

General information

Finish

-

Manufacturer guidance

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

Material

Gypsum

Metal

Plasterboard

Steel

Glass mineral wool

Width

102 mm

Height

3300 mm

Uniclass

Ss_25_10_30_35 Gypsum board partition systemsPrimary

CAWS

K10/125 Metal stud partition system

Product range

Internal Partitions and Walls / GypWall Staggered

Specification data - Gypsum board partition systems

Framing

Base channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Head channel: Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel.
Stud: Gypframe 60 I 70 'I' Stud.
Abutments and openings: Gypframe 70 S 50 'C' Stud.
Clips: Gypframe SC1 Spacer Clip.

Insulation

Insulation, Layer 1: 50mm Isover Acoustic Partition Roll (APR 1200).

Linings

Board side 1, Layer 1: Gyproc SoundBloc 15mm.
Board side 2, Layer 1: Gyproc SoundBloc 15mm.

Fasteners

Screws side 1, Layer 1: British Gypsum Jack-Point Screws 25mm.
Screws side 2, Layer 1: British Gypsum Jack-Point Screws 25mm.

Joint treatment

Fixing strap: Gypframe GFS1 Fixing Strap.
Fixing T: Gypframe GFT1 Fixing 'T'.

Finish

To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information.

System accessories

Sealant: Gyproc Sealant.

Execution

Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Staggered/A233021-EN#details

Fire resistance

BS EN 1364-1, 30 / 30 Integrity / Insulation

Sound insulation

BS 2750-3, 52 Rw dB

Strength grade

BS 5234-2, Medium duty (MD)

Partition height

3300mm

Partition thickness

102mm
