GypWall Staggered - A233027 (A) (EN)
Verified by manufacturer 7 months ago
Description

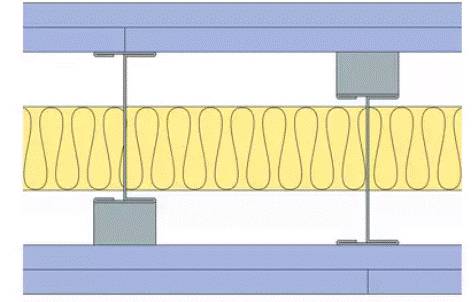

Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 92 I 90 ‘I’ Studs in Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Gypframe SC2 Spacer Clips and alternate studs staggered in the channel at 300mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4200mm.
General information
Finish | Manufacturer guidanceTo achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
Material | Gypsum Metal Plasterboard Steel Glass mineral wool |
Width | 198 mm |
Height | 4200 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Base channel: Gypframe 148 FEC 50 Folded Edge Standard Floor & Ceiling Channel. |
Insulation | Insulation, Layer 1: 50mm Isover Acoustic Partition Roll (APR 1200). |
Linings | Board side 1, Layer 1: Gyproc SoundBloc 12.5mm. |
Fasteners | Screws side 1, Layer 1: British Gypsum Jack-Point Screws 25mm. |
Joint treatment | Fixing strap: Gypframe GFS1 Fixing Strap. |
Finish | To achieve the specified performances, the system should be finished using either one of our Thistle or ThistlePro plasters, or Gyproc jointing products. See the product range guides on the British Gypsum website for more information. |
System accessories | Sealant: Gyproc Sealant. |
Execution | Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Staggered/A233027-A-EN#details |
Fire resistance | BS EN 1364-1, 60 / 60 Integrity / Insulation |
Sound insulation | BS 2750-3, 62 Rw dB / 53 Rw + Ctr dB |
Strength grade | BS 5234-2, Severe duty (SD) |
Partition height | 4200mm |
Partition thickness | 198mm |
