GypWall Twin Frame Braced - A216009S (B) (EN)

Name: GypWall Twin Frame Braced - A216009S (B) (EN)
Brand: British Gypsum
SKU: 5rP6P4Vcboi5UceLCJZHMH

Verified by manufacturer 5 days ago

British Gypsum

Jump to:

+44 (0)844 800 1991 Website

Description

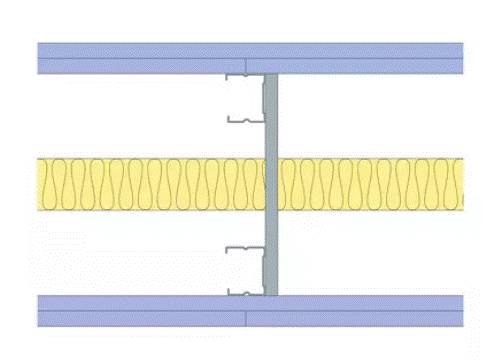

Two layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 48 S 50 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 1200mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 6200mm.

General information

Finish	- Manufacturer guidance Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
Material	Gypsum Metal Plasterboard Steel Glass mineral wool
Width	204 mm
Height	6200 mm

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/125 Metal stud partition system

Product range	Internal Partitions and Walls / GypWall Twin Frame Braced

Specification data - Gypsum board partition systems

Framing	Base channel: Gypframe 50 DC 60 Deep Flange Floor & Ceiling Channel. Head channel: Gypframe 50 DC 60 Deep Flange Floor & Ceiling Channel. Stud: Gypframe 48 S 50 'C' Stud. Abutments and openings: Gypframe 48 S 50 'C' Stud. Bracing: Gypframe 99 FC 50 Fixing Channel.
Insulation	Insulation, Layer 1: 50mm Isover Acoustic Partition Roll (APR 1200).
Linings	Board side 1, Layer 1: Gyproc SoundBloc 15mm. Board side 1, Layer 2: Gyproc SoundBloc 15mm. Board side 2, Layer 1: Gyproc SoundBloc 15mm. Board side 2, Layer 2: Gyproc SoundBloc 15mm.
Fasteners	Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 1, Layer 2: British Gypsum Drywall Screws 40mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 2: British Gypsum Drywall Screws 40mm. Bracing fixing: British Gypsum Wafer Head Drywall Screws 13mm.
Joint treatment	Fixing strap: Gypframe GFS1 Fixing Strap.
Finish	Finish coat, Side 1: Thistle MultiFinish. Finish coat, Side 2: Thistle MultiFinish.
System accessories	Sealant: Gyproc Sealant.
Execution	Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Twin-Frame-Braced/A216009S-B-EN#details

Fire resistance	BS EN 1364-1, 60 / 60 Integrity / Insulation
Sound insulation	BS EN ISO 10140-2, 63 Rw dB / 56 Rw + Ctr dB
Strength grade	BS 5234-2, Severe duty (SD)
Partition height	6200mm
Partition thickness	204mm
