GypWall Twin Frame Braced - L216011 (EN)

Name: GypWall Twin Frame Braced - L216011 (EN)
Brand: British Gypsum
SKU: mLWwMFbaBDFDcVxu3AbNn

Verified by manufacturer 4 months ago

British Gypsum

Jump to:

+44 (0)844 800 1991 Website

Description

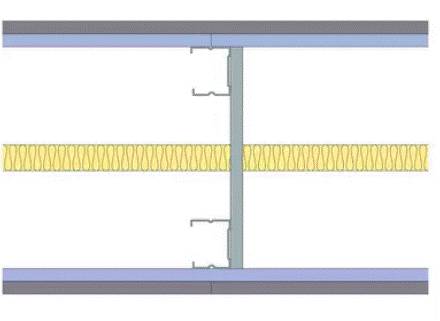

Inner layer of Gyproc SoundBloc 12.5mm with an outer layer of Gyproc Habito 12.5mm fixed to outside faces of two Gypframe 48 S 50 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 1200mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 3000mm.

General information

Finish	- Manufacturer guidance To achieve the specified performances, the system should be finished using Gyproc jointing products. See the product range guides on the British Gypsum website for more information.
Material	Gypsum Metal Plasterboard Steel Glass mineral wool
Width	200 mm
Height	3000 mm

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/125 Metal stud partition system

SKU Code	SP00010415

Product range	Internal Partitions and Walls / GypWall Twin Frame Braced

Specification data - Gypsum board partition systems

Framing	Base channel: Gypframe 50 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Head channel: Gypframe 50 FEC 50 Folded Edge Standard Floor & Ceiling Channel. Stud: Gypframe 48 S 50 'C' Stud. Abutments and openings: Gypframe 48 S 50 'C' Stud. Bracing: Gypframe 99 FC 50 Fixing Channel.
Insulation	Insulation, Layer 1: 25mm Isover Acoustic Partition Roll (APR 1200).
Linings	Board side 1, Layer 1: Gyproc SoundBloc 12.5mm. Board side 1, Layer 2: Gyproc Habito 12.5mm. Board side 2, Layer 1: Gyproc SoundBloc 12.5mm. Board side 2, Layer 2: Gyproc Habito 12.5mm.
Fasteners	Screws side 1, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 1, Layer 2: British Gypsum High Performance Screws 35mm. Screws side 2, Layer 1: British Gypsum Drywall Screws 25mm. Screws side 2, Layer 2: British Gypsum High Performance Screws 35mm. Bracing fixing: British Gypsum Wafer Head Drywall Screws 13mm.
Joint treatment	Fixing strap: Gypframe GFS1 Fixing Strap.
Finish	To achieve the specified performances, the system should be finished using Gyproc jointing products. See the product range guides on the British Gypsum website for more information.
System accessories	Sealant: Gyproc Sealant.
Execution	Please review details on the British Gypsum website at: https://www.british-gypsum.com/Specification/White-Book-Specification-Selector/internal-partitions-walls/GypWall-Twin-Frame-Braced/L216011-EN#details

Fire resistance	BS EN 1364-1, 90 / 90 Integrity / Insulation
Sound insulation	BS EN ISO 10140-2, 59 Rw dB / 50 Rw + Ctr dB
Strength grade	BS 5234-2, Severe duty (SD)
Partition height	3000mm
Partition thickness	200mm
