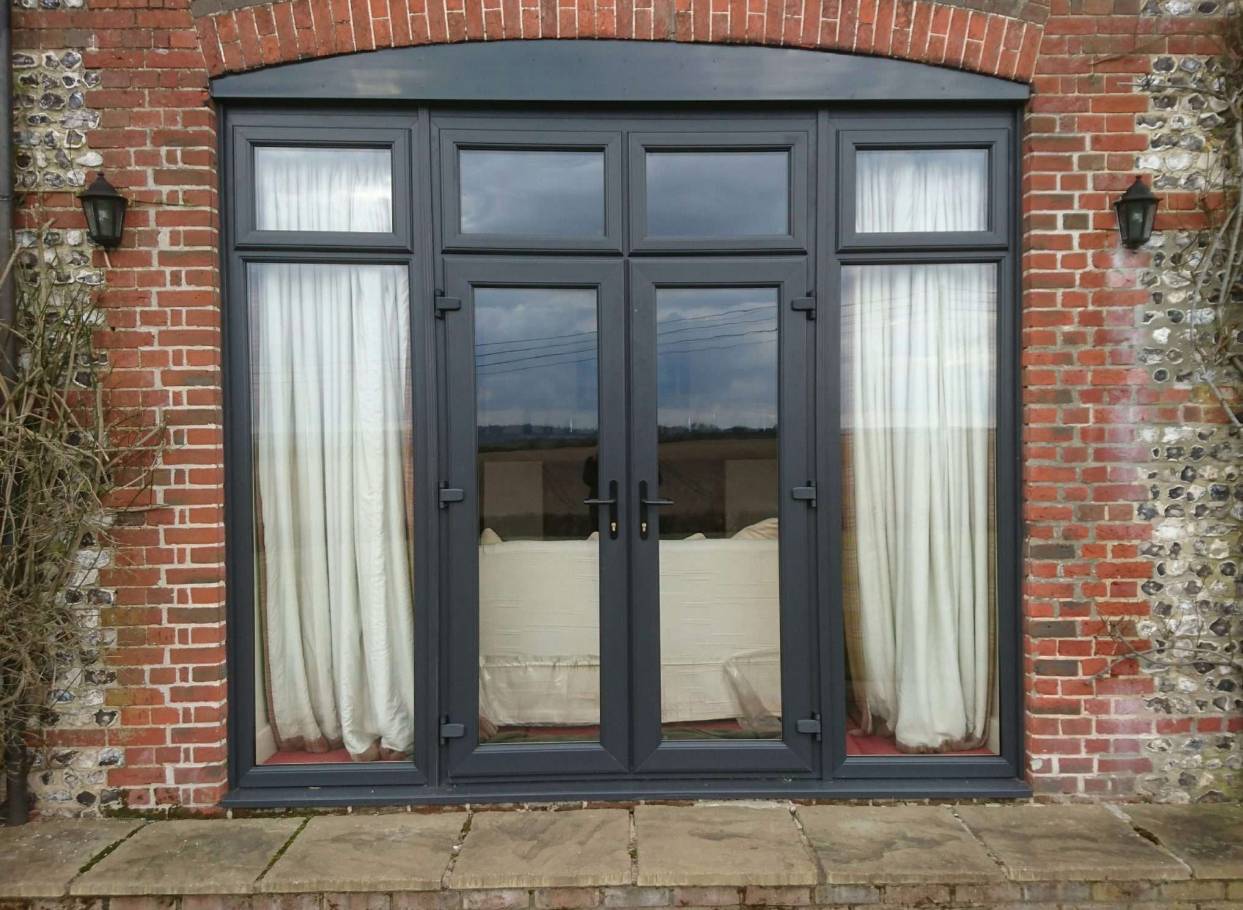

Halo Rustique Residential Door

Verified by manufacturer 2 months ago

VEKA plc Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

PVC-U Residential and French door system.

Jump to:
+44 (0)1282 716611 Website

Application

Suitable for all building types.

Description

Where the look and feel of a more traditional door product is desired; Halo Rustique Residential and French Doors offer an uncompromising PVC-U solution. There are a host of options to customize appearance and optimize functionality; including style, colour, glazing options, and opening direction.


Features and benefits:

  • Large assortment of colours and woodgrain options.
  • Sculptured or bevelled options available.
  • Complies to BS EN 12608-1+A1:2020/ PAS 24:2022.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Available in a large assortment of colours and woodgrain options from the Variations range.

Finish

Coated

Woodgrain

Material

PVC-U

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets

Standard

External non-fire-rated doorset to BS 7412 and BS EN 12608-1.

Configuration

Single-leaf, single-action.

Double-leaf, single-action.

Doorset size

-

Manufacturer guidance

Consult manufacturer and insert requirements.

  • Residential max sash size: 1122 (w) x 2122 mm (h).
  • French door max sash size: 1122 (w) x 2122 mm (h).

Performance

-

Acoustic performance

-

Manufacturer guidance

Seek guidance from glazing manufacturer, expect a change of 1–2 dB for whole window acoustics.

Thermal

1.3 W/m²K.

Guidance for specification option:

Achieves U-values as low as 1.3 W/m²K using double glazing.

1.0 W/m²K.

Guidance for specification option:

Achieves U-values as low as 1.0 W/m²K using triple glazing.

Intruder resistance

-

Minimum requirement

To PAS24:2022.

Conformity

Certification by accredited third-party certification body. Type testing not permitted.

Frame

-

Materials

PVC-U.

Threshold

Not required.

Part M low threshold.

Guidance for specification option:

Residential doors only (not available on french doors).

French door low threshold.

Guidance for specification option:

Residential doors only (not available on french doors).

Perimeter seals or inserts

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Finish and colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.


Available in a large assortment of colours and woodgrain options from the Variations range.


Installation fasteners

Manufacturer's standard.

Frame accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Door leaf

-

Thickness

Manufacturer's standard.

Perimeter seals

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Material

PVC-U.

Finish

-

Manufacturer guidance

Consult manufacturer and insert requirements.


Available in a large assortment of colours and woodgrain options from the Variations range.

Glazing

-

Type

Double glazed.

Triple glazed.

Beading

24 mm sculptured.

28 mm sculptured.

32 mm sculptured.

36 mm bevelled.

40 mm bevelled.

Hardware

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Perimeter seals

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Installation fasteners

Manufacturer's standard.

Accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Range of ancillary items available including:

  • Frame extensions, cills and weathering trims.
  • Range of coupling options.
  • Range of bay pole options.

Outer frame

56 mm.

72 mm.

84 mm.

Mid rails

116 mm midrail.

Sash

110 mm door sash.

Air permeability

Class 4.

Watertightness

Class 7A.

Resistance to wind load

Class A3.

UK exposure category

1200 Pa.

Sustainability data

Country of product manufacture

United Kingdom

Material

PVC-U

Recyclability

Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK.

Expected Life

35 year

Guidance for specification option:

Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years.

Manufacturer guidance

Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years.

Third party certifications

BSI Kitemark

BSI Kitemark

Halo Rustique Residential Door Kitemark™ Certificate No. KM 60983

Literature

Halo Rustique Residential Door Specification

Halo Rustique Residential Door Specification
