Halton 2016 (D10 SR4) - Steel Doorset

Verified by manufacturer 14 days ago

Halton 2016 - Single Leaf

Stafford Bridge Doors Ltd Variant:
Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

The Halton 2016 doorset is developed to resist experienced attempts at forced entry of government or commercial premises, with no regard to noise.

Jump to:
BOS
 +44 (0)1234 826 316 Website

Application

Commercial or government premises. Suitable for both internal and external use.

Description

The doorset has been developed to resist experienced attempts at forced entry of government or commercial premises, with no regard to noise. Approved for Government use, contact NPSA for further details.

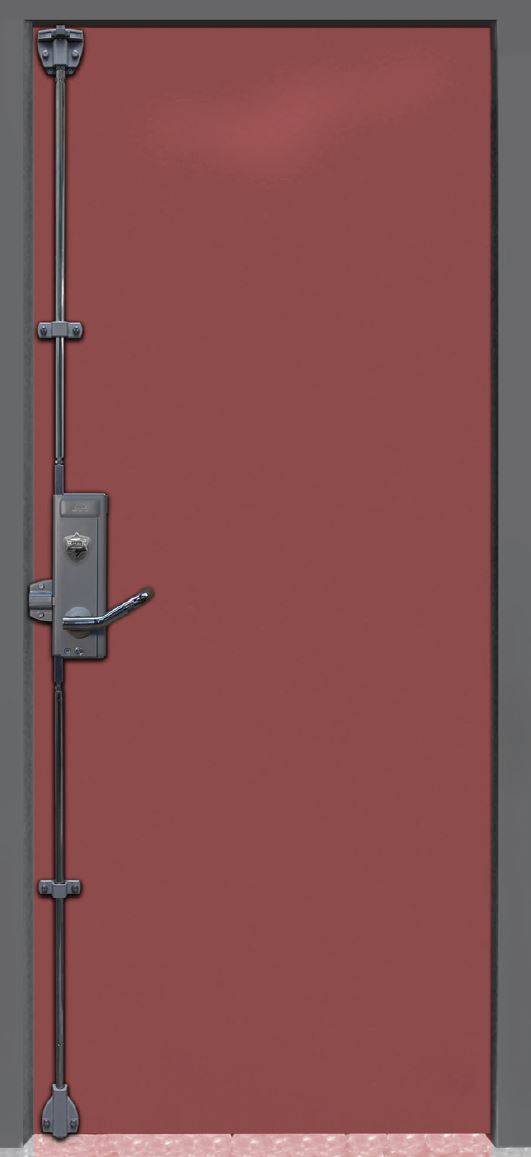

Halton 2016 doorsets are fully certified with single outward opening leaves. External doors as standard, fitted with external drip rail.


External doorsets are CE and UKCA marked to EN 14351-1. Internal non-fire-rated doorset third-party certified to BS EN 1634-1. LPS 1175 Issue 8 and FSC certification.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

To BS or RAL colour specification.

Finish

Primed

Painted

Gloss

Other

Satin

Show more

Material

Carbon steel

Timber

Manufacturer guidance

Carbon steel door leaf and frame with a timber core.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Carbon steel doorsets

Standard

To EN 14351-1, BS EN 1634-1, BS EN 1522/1523 (FB4) BS EN 1522/1523 (FB6).

Configuration

Single-leaf, single-action - inward opening.

Single-leaf, single-action - outward opening.

Manufacturer guidance

Inward or outward opening. Insert requirements.

Doorset size

-

Manufacturer guidance

Maximum/ minimum sizes to comply with security requirements regardless of fire rating.

- Single doorset:

Structural opening is 1000 x 2100 mm (w x h).


Please contact Stafford bridge for further details depending on fire rating. Any other size outside (above or below) the above will have to be taken at client’s risk.


Performance

-

Fire resistance

-

Integrity

FD60 to BS EN 1634-1.

FD120 to BS EN 1634-1.

Not applicable.

Thermal

Single door – 3.1 W/(m².K).
Single door with glazing – 3.4 W/(m².K).

Intruder resistance

-

Minimum requirement

Contact NPSA for further Details. LPS 1175 Issue 8.

Conformity

Contact NPSA for further Details.

Bullet resistance

-

Manufacturer guidance

Independently tested to EN1522/1523: FB4 & FB6, please contact Stafford Bridge for further details

Explosion resistance

-

Blast duration

-

Manufacturer guidance

'People In Protected Spaces' C15/C25 available for certain configurations, please contact Stafford Bridge for further details.

Frame

-

Material

Steel wrapped frame with steel reinforced timber infill.

Threshold

No threshold.

6 mm Stainless steel 304/ 316 soleplate (threshold) with a 15 mm upstand.

6 mm Stainless steel 304/ 316 soleplate (threshold).

Exitex CDT100 low level aluminium threshold on top of the 6mm stainless steel Soleplate only (threshold).

Exitex CDT100 low level aluminium threshold.

Perimeter seals or inserts

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

-

Coating

Full paint finish.

Primed ready for site finish.

Veneered.

Laminated.

Texture

As standard 30% gloss.

Colour

-

Manufacturer guidance

Any BS colour code or RAL colour available.

Installation fasteners

M10 x 100 Coach screws.

Guidance for specification option:

Fixing into timber.


M10 x 100 Hex head set screws.

Guidance for specification option:

Fixing into steel.


Hilti HRD-UGS 14x140/70 U Plastic frame anchor.

Guidance for specification option:

Fixing into concrete, brick, or block work.

Frame accessories

Door contacts.

Door leaf

-

Thickness

Minimum 58 mm.

Material

Steel wrapped timber composite door.

Lippings

Non-fire rated: concealed steel lipping’s to all edges.
Fire rated (Up to FD60): Concealed Hardwood lipping’s to all edges.
Fire rated (FD120 / FD240): concealed steel lipping’s to all edges.

Perimeter seals

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Glazing

-

Type

Surelock McGill vision panels with a clear vision of 170 x 370 mm. Minimum to EN 356 Class P8B.

Guidance for specification option:

  • Painted steel beading as standard.
  • Optional to have hardwood cloaking to match door leaf finish (if veneered), this reduces clear vision to 150 x 350 mm.

None.

Manufacturer guidance

Options for either a single or double vision panel configurations per leaf for non-fire rated doors. Please note that vision panels are not allowed on fire-rated doors.

Manifestation

Non-fire rated vision panels are unmarked.
Fire rated vision panels are only marked for Fire resistance.

Beading

-

Type

External.

Internal.

Steel beading (manufacturer's standard).

Material

Steel.

Fixing

Manufacturers standard (steel beading) machine screws.

Finish

-

Coating

Wet spray, two coats.

Primed ready for site finish.

Manufacturer guidance

Doors can be supplied in a variety of finishes to match existing or other new doors on a project, including full gloss paint finish to BS or RAL colour specification, veneered or laminated finishes are available with a variety of staining options.

Texture

30% gloss.

External colour

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.


Internal colour

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.


Film thickness (minimum)

-

Manufacturer guidance

80-160 microns.


Door accessories

Door contacts

Guidance for specification option:

Surface or concealed.

Fabric alarm to the inside of the door leaf.

Hardware

Access control.

Cable conduits.

Cable loops.

Closers.

Cylinder guards.

Door Actuators.

Door selectors.

Door stays.

Drop seals.

Guidance for specification option:

Enhance functionality with optional drop seals for improved sound insulation and environmental control.

Frame head drips.

Handles.

Hinge bolts.

Hinges.

Intumescent strips (if fire rated).

Kick plates.

Guidance for specification option:

Incorporate kickplates to protect the lower part of the door from wear and tear, adding durability to the doorset.

Locking system.

Guidance for specification option:

Choose from a selection of single-point or multi-point locking systems provided by Surelock McGill Ltd. Refer to full certification for complete approved locking systems listed on Redbook live.

Meeting stile T-bars.

Spy holes.

Vision panels.

Weather boards.

Architraves

-

Material

MDF.

Guidance for specification option:

If frame is painted and internal, MDF.

Hardwood.

Guidance for specification option:

If frame is painted and external, Hardwood.


Finish

To match frame colour.

Colour

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Accessories

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Carbon steel

Timber

Manufacturer guidance

Carbon steel door leaf and frame with a timber core.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

2

IFC
 -

2

Third party certifications

BRE Certificate

BRE Certificate

Halton Doorset LPS 1175 Certificate

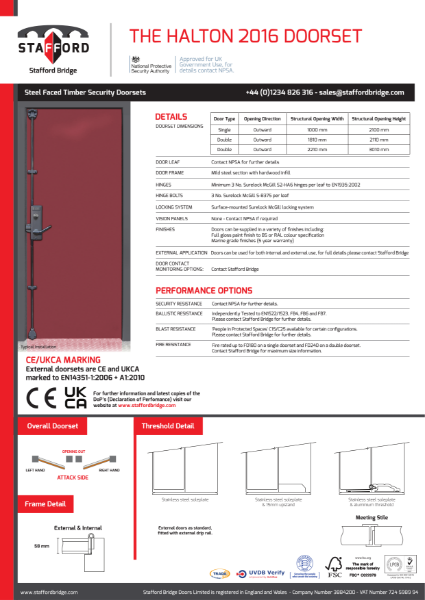

Literature

Halton 2016

Halton 2016

Similar products from Stafford Bridge Doors Ltd

Halton D10 (SR4) - Doorset

Halton D10 (SR4) - Doorset
