Application

Suitable for vanity mounting in bathrooms with a high visitor frequency - Shopping centres, restaurants, hotels, airports, sports facilities, schools and public institutions.

Description

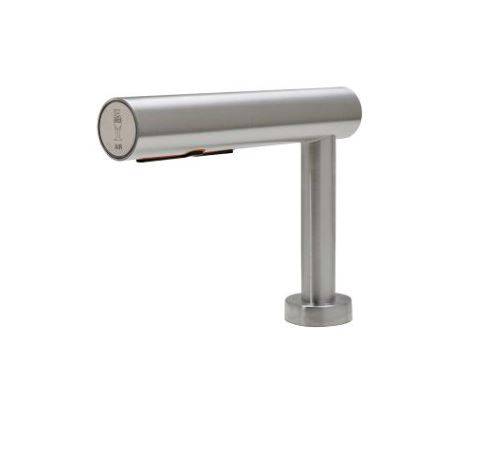

Satin stainless steel vanity mounted touch free Airtap hand dryer. Size (h x w x d): 170 x 50 x 220 mm.


Features and benefits:



  • Table top mounting.
  •  Intelligent temperature control technology and automatic heating adjustment.
  •  Drying cycle of only 10-15 seconds.
  •  Powerful commutator motor with carbon brushes.
  • Infra-red sensor and electronic timer.


General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Other

Length

220 mm

Guidance for specification option:

Depth.

Width

50 mm

Height

170 mm

Warranty description

Two year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

V90/590 Equipment

N13/64 Hand dryers

N13/472 Hand dryers

Specification data - Hand dryers

Form

Warm air.

Operation

Automatic.

Electrical supply

-

Power rating

1000 W.

Body

-

Material

Stainless steel.

Finish

Satin.

Colour

Natural.

Ingress protection (minimum)

IP35.

Dimensions

170 x 50 x 220 mm.

Manufacturer guidance

Height x width x depth.

Noise level at 1 m (maximum)

68.5–70.5 dBA.

Features

Vanity mounted touch free Airtap hand dryer, infra-red sensor and electronic timer.

Sustainability data

Contains Red List materials

No

Country of material origin

Taiwan

Country of product manufacture

Denmark

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

Use as scrap metal

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Literature

Dan Dryer Vanity/Wall Mounted Taps

Dan Dryer Vanity/Wall Mounted Taps
