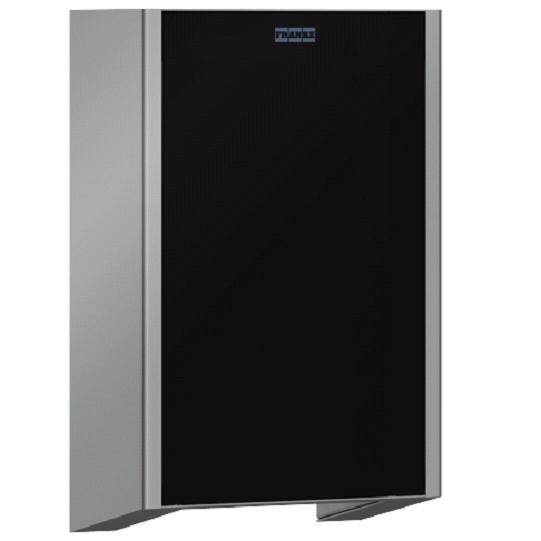

Hand Dryer - STRX220
Verified by manufacturer over a year ago
Touch free electronic warm air hand dryer for wall mounting.
Application
For wall mounting.
Description
Touch free electronic warm air hand dryer for wall mounting.
Features and Benefits:
- Electronic warm air hand dryer.
- With a InoxPlus® surface refinement for the reduction of fingerprints and better cleaning characteristics (easy to clean).
- Curved front cover.
- Infra-red sensor for non-touch operation.
- Sensor range adjustable from 50 to 330 mm.
- Automatic power shut-off after 60 seconds and due to the extreme high, adjustable air velocity the drying time is shortened strongly.
- Cable and plug not included.
General information
Color | Silver |
Finish | Satin Guidance for specification option: With InoxPlus antifingerprint coating. |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Rectangle Guidance for specification option: Rounded. |
Length | 267 mm |
Width | 156 mm |
Height | 130 mm Manufacturer guidanceProjection. |
Warranty description | Five year |
Uniclass | |
CAWS | N13/472 Hand dryers |
Product range |
Specification data - Hand dryers
Form | Warm air. |
Operation | Automatic.Guidance for specification option: Infrared sensor activity for non-touch operation. |
Timer | Fixed.Guidance for specification option: Automatic power shut-off after 60 seconds. |
Electrical supply | |
Power rating | 1 kW. |
Rated operational voltage (Ue) | 240 V. |
Frequency | 50 Hz. |
Body | |
Material | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish | Satin. |
Colour | Stainless steel. |
Dimensions | 130 x 156 x 267 mm. |
Noise level at 1 m (maximum) | 76.20 dB. |
Product Reference | (STRX220) 201.0473.301 |
CenterlineAirVelocity | 75-110 m/s. |
Volume | 120 m³/h. Guidance for specification option: Air volume. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Arab Emirates |
Country of product manufacture | United Arab Emirates |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
Similar products from KWC DVS Limited

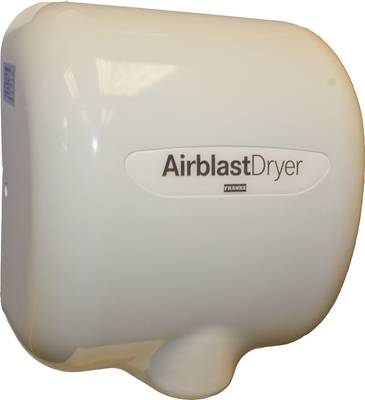

Airblast Hands Under Hand Dryer

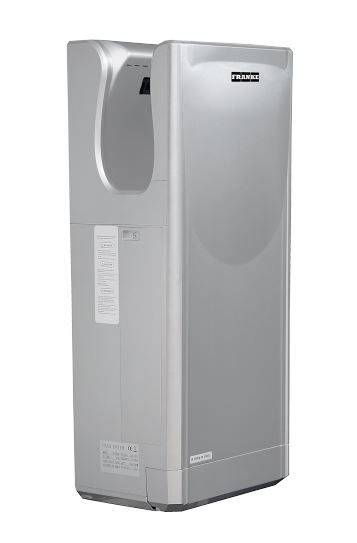

DRYX High Performance Hands In Hand Dryer
