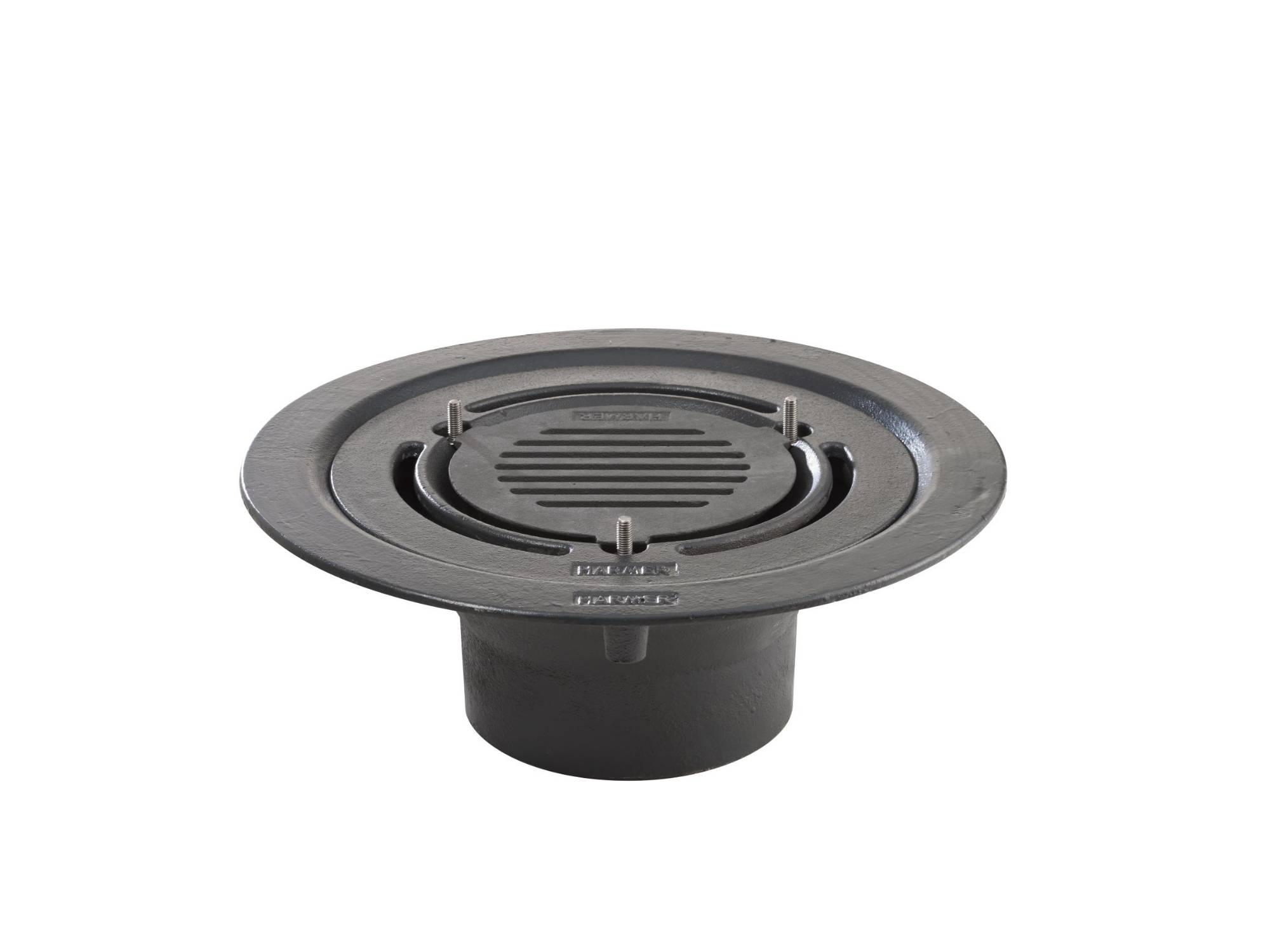

Harmer Large Sump Cast Iron Roof Outlet

Name: Harmer Large Sump Cast Iron Roof Outlet
Brand: Alumasc Water Management Solutions
SKU: vTkpFyxjHJr5P4sHLquV4U

Verified by manufacturer 19 days ago

C600TL - 6" BSP Threaded

Alumasc Water Management Solutions

Third party certifications:

UKAS
Certificate type

Large Sump Cast Iron Roof Outlet

Jump to:

+44 (0)1536 383810 Website

Application

For vertical pipe connections

Description

A range of large sump cast iron roof outlets. The outlets are threaded to 4” and 6” BSP and can be used with Harmer adaptors for connection to cast iron, high density polyethylene (HDPE), polyvinyl chloride (PVCu) and stainless steel pipework systems.

Features and Benefits:

Expected life in excess of 60 years
Provides deep outlet sump bodies for 100 and 150 mm vertical pipe connections
Available with flat grating, adjustable height grates, and double flanged bodies

General information

Color	Black Grey
Finish	Zinc plated
Material	Cast iron

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

Product range	Harmer Building Drainage / Cast Iron Roof Outlets

Specification data - Gravity rainwater outlets

Roof construction	-
Form	Timber, cast and metal deck.
Material	Cast iron.
Grating	Domed. Guidance for specification option: Standard. Flat. Guidance for specification option: Optional.
Spigots	Threaded.
Integral accessories	Clamping ring and nut/bolt.

Standards	To BS EN 12056:2000.
Flowrate	10.35 L/s.
Fire rating (to BS EN 13501)	A2.
Finish and colour	Sherardized zinc coating, black/ grey.
Outlet	Vertical.
NominalSize	6".
Accessories	None. Adjustable height grates. Double flanged bodies.
